Audio Video Capture Card Box HDMI Video Capture 4K 60Hz With Audio

  • Product Origin:

    China
  • Item NO.:

    --
  • Shipping Port:

    Guangzhou/Shenzhen
Product Details

Audio Video Capture Card Box HDMI Video Capture 4K 60Hz With Audio



Ⅰ.Product Parameters

Product Name HDMI Video Capture With Audio
Input Resolution Maximum 4k@60Hz 4:4:4
Output Resolution Maximum 4k@60Hz
Video Output Mode MJPEG/YUY2/NV12/I420/XRGB
Max Bandwidth 600MHz
Max Baud Rate 18Gbps
Support Audio Format Meet the UVC and UAC standards
Warranty 1 Year

The HDMI video capture can capture HDMI video and HDMI audio with MIC audio mix. It can transmit audio signal to computer and smartphone to preview and storage, suitable for game live meetings, the HD recording supports the XRGB format.

* Supports HDCP2.2/HDCP1.4/HDR10.

* Input: 4k HDMI2.0 input, microphone input.

* Output: 4k HDMI 2.0 loop out, Type-c (5Gbps) output, audio output.

* Automatic detection of the input signals, resolution up to 4K@60Hz.

* Support video format: MJPEG/YUY2/NV12/I420/XRGB.

* Uncompressed video and audio acquisition, meet the UVC and UAC standards.

* USB Type-c power supply, plug and play, no drive.

* Compatible with Windows, MacOS.

* Compatible OBS, Potplayer, VLC, Vmix and etc.

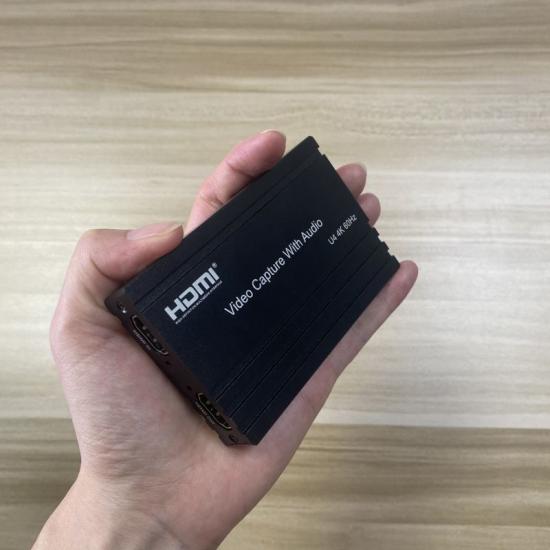

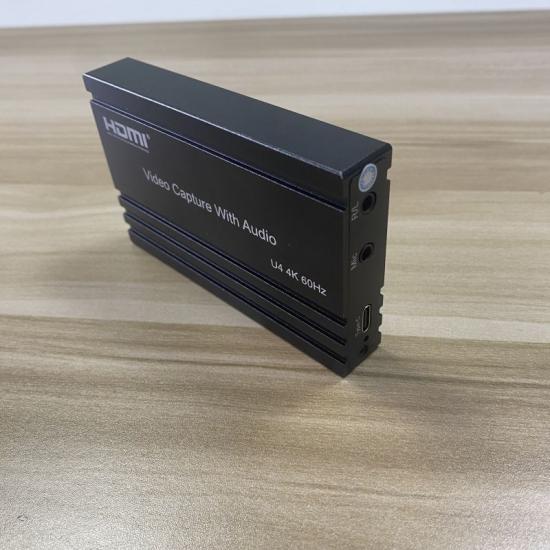

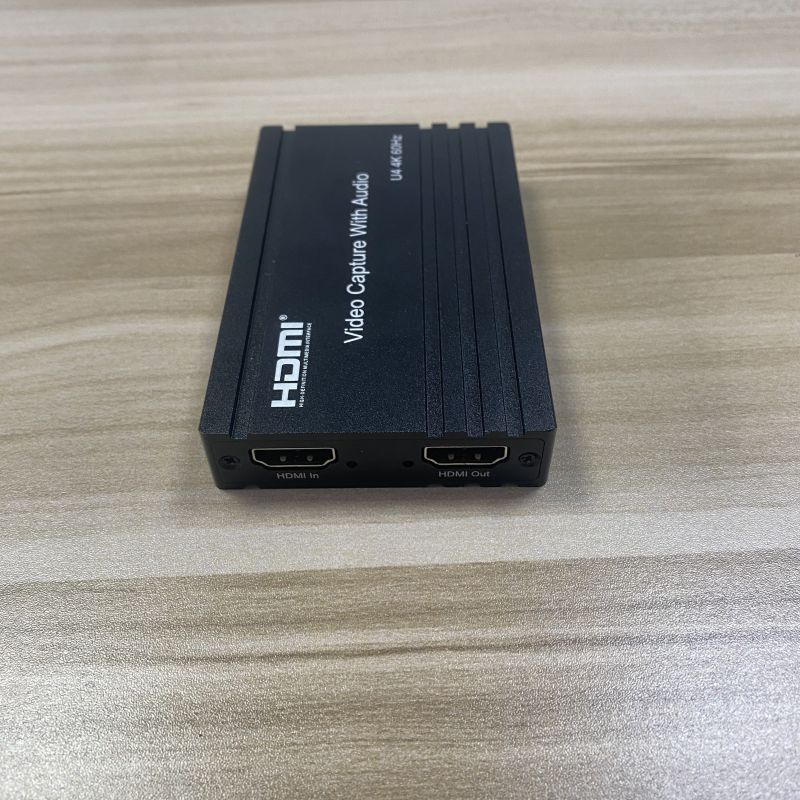

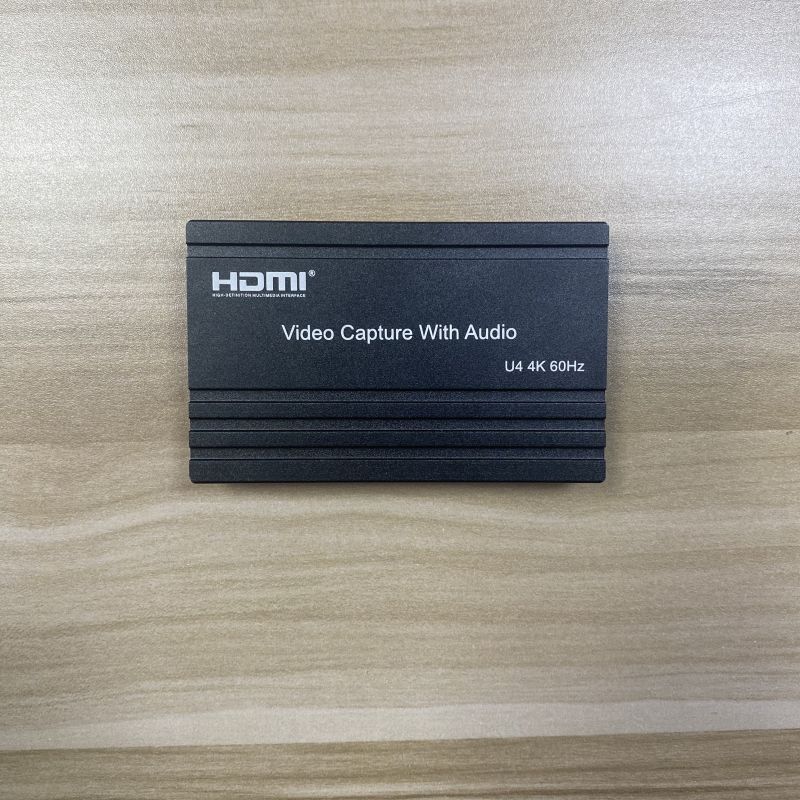

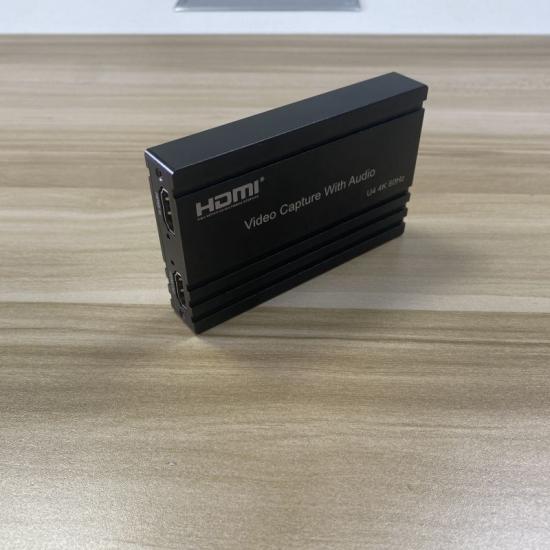

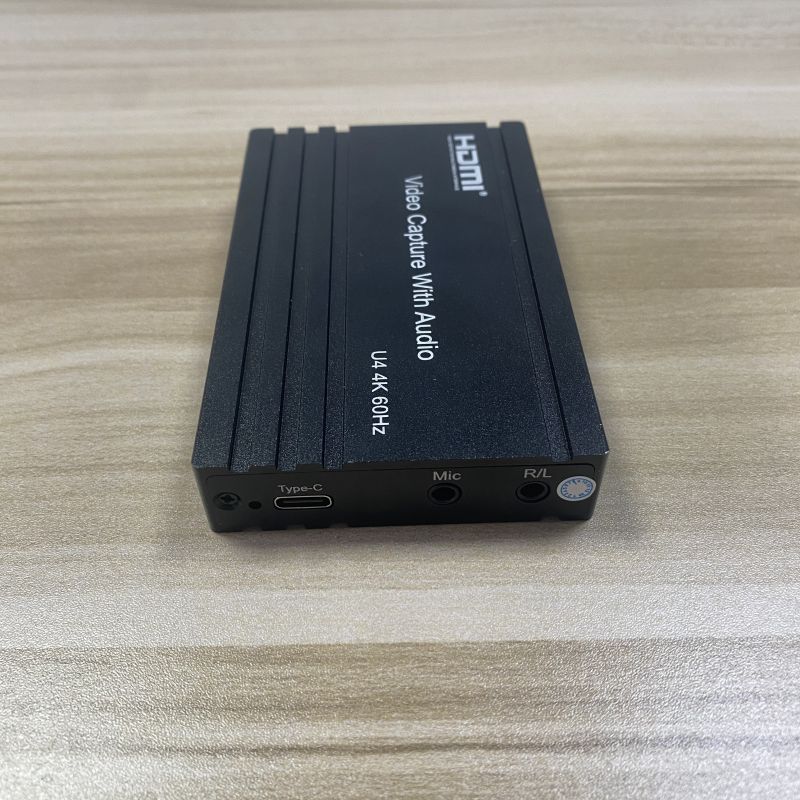

Ⅱ.Product Image
