DTECH DT-5019C 0.5m 1m 1.5m USB2.0 to RS485 RS422 RS232 Serial Port Converter Adapter Cable

  • Product Origin:

    China
  • Brand:

    DTECH
  • Item NO.:

    DT-5019C
  • Shipping Port:

    Guangzhou/Shenzhen
Product Details

DTECH DT-5019C 0.5m 1m 1.5m USB2.0 to RS485 RS422 RS232 Serial Port Converter Adapter Cable



Ⅰ. Product Parameters

Product Name USB2.0 to RS232/485/422 Serial Cable
Brand DTECH
Model DT-5019C
Cable Length 0.5m/1m/1.5m

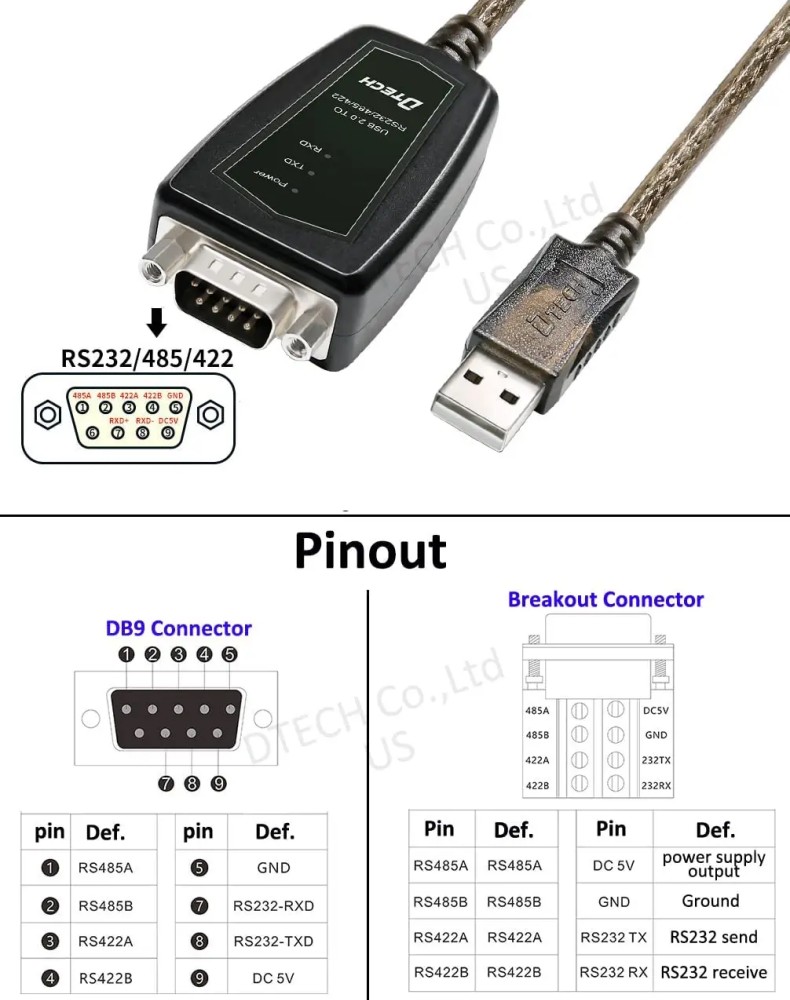

Interface Compatibility RS422/RS485/RS232 standard
Signal Indication ①Power②Send data: TXD③Receive data: RXD
Communication Speed RS422/485 speed: 300bps-3Mbps, RS232 speed: 300bps-115200bps
Communication Distance USB end: <=5m; RS-485/RS-422/RS-232 end: 1200m
Supported Systems Win XP/7/8/10, Mac, Linux (no driver for Linux kernel 4.0 or higher)
Warranty 1 Year

Ⅱ. Product Introduction

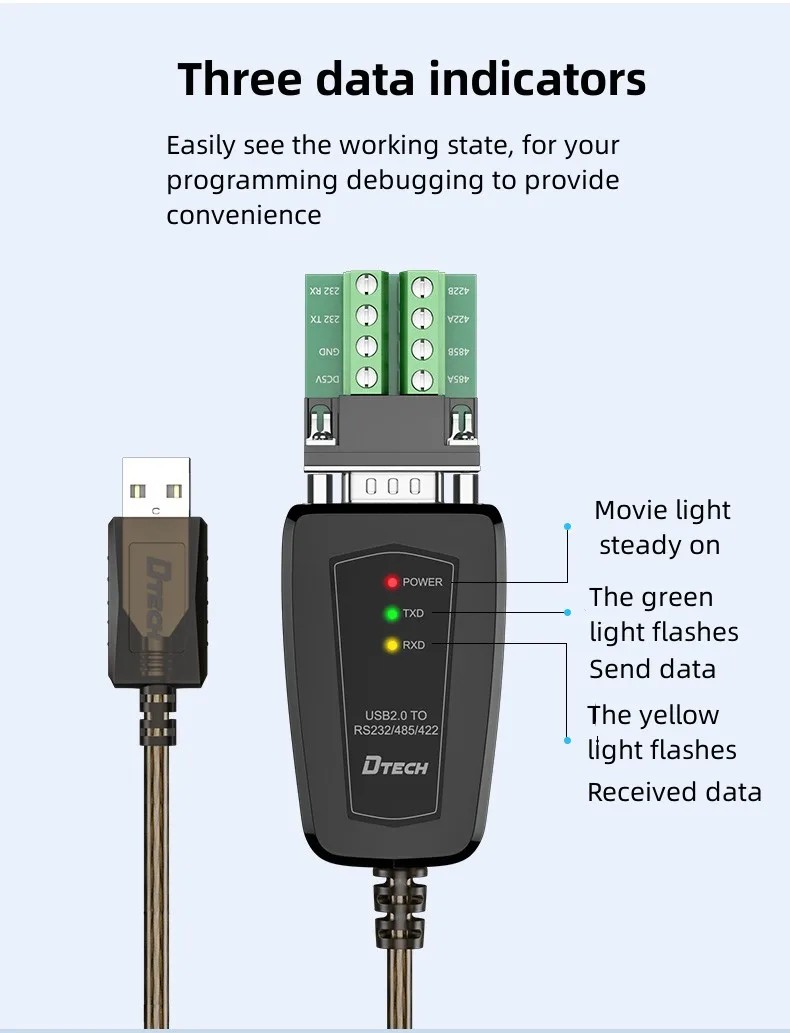

Three data indicators

Easily see the working state, for your programming debugging to provide convenience.

Support for multiple technologies

*Compatible with usb2.0, rs232/485/422 standard protocols.

*Automatically determine and control the direction of data transmission.

*Automatically detects the baud rate of serial port signals.

Communication baud rate

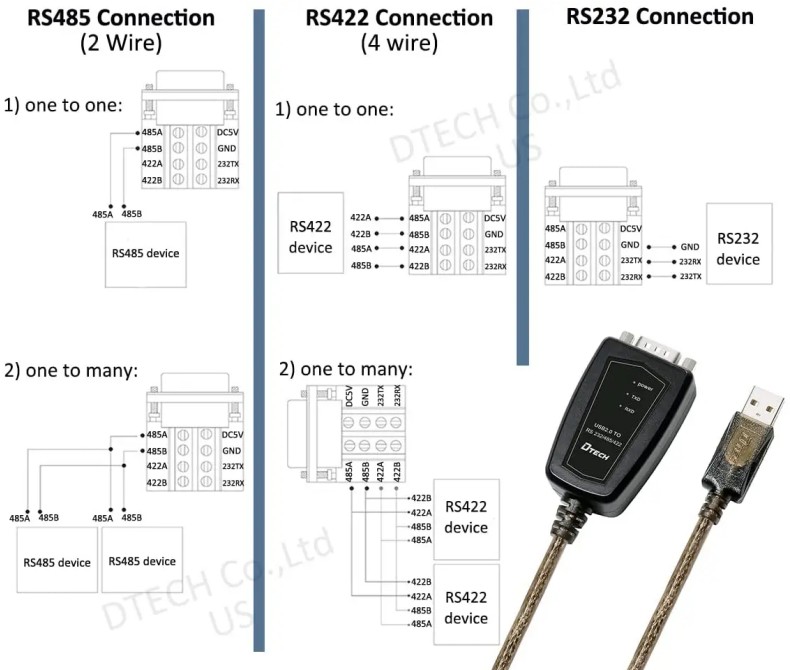

Can connect to 256 sets of rs485/422 equipment

Point-to-multipoint converter can connect 256 rs485/rs422 interface devices, data communication baud rate range of 300bps to 3Mbps, rs232 can only achieve one-to-one communication.

Zero delay transceiver conversion

The converter is equipped with zero delay automatic transmission and conversion, ensuring data transmission without delay and faster signal operation, providing reliable connection for your communication.

RS232/485/422 Protocol mode automatic conversion I/O circuit.

Automatically control the direction of data flow through l/O circuits without the need for any handshake signals (such as RTS DTR, etc.) can achieve mode conversion without the need for jumper settings, ensuring compliance with existing communicatio software and interface hardware.

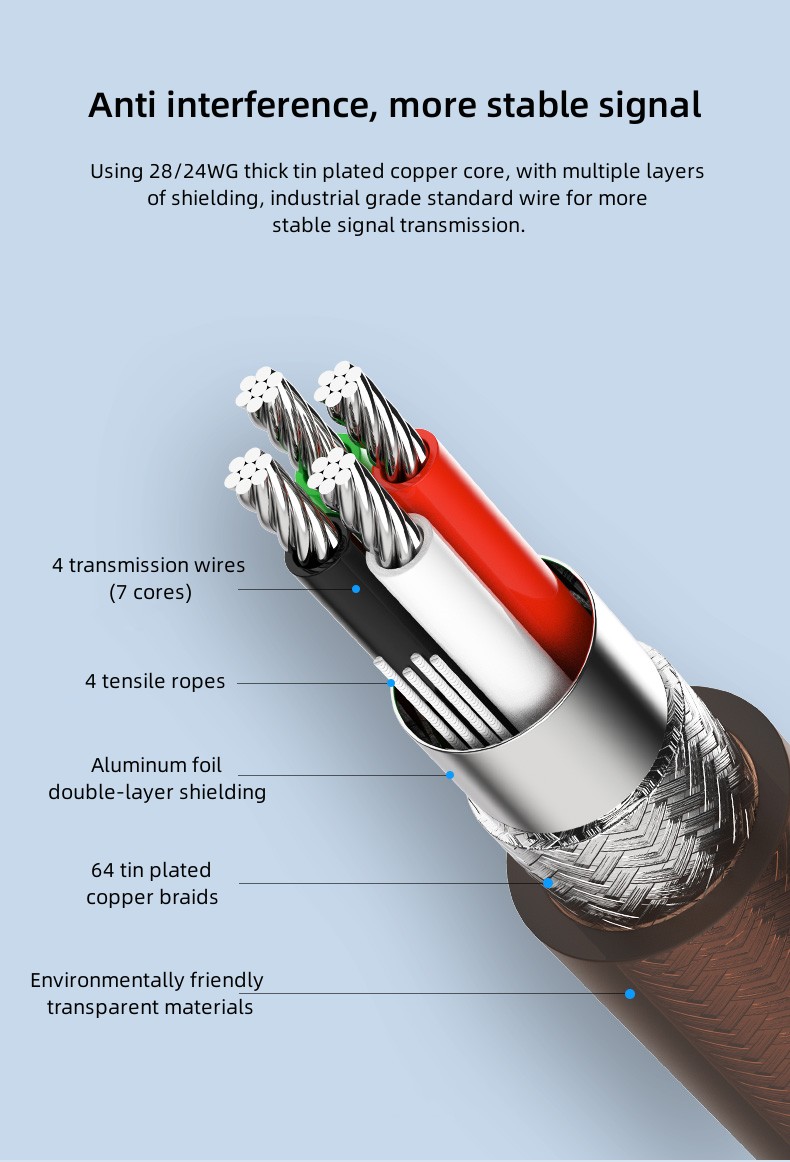

Anti interference, more stable signal

Using 28/24WG thick tin plated copper core, with multiple layers of shielding, industrial grade standard wire for more stable sianal transmission.

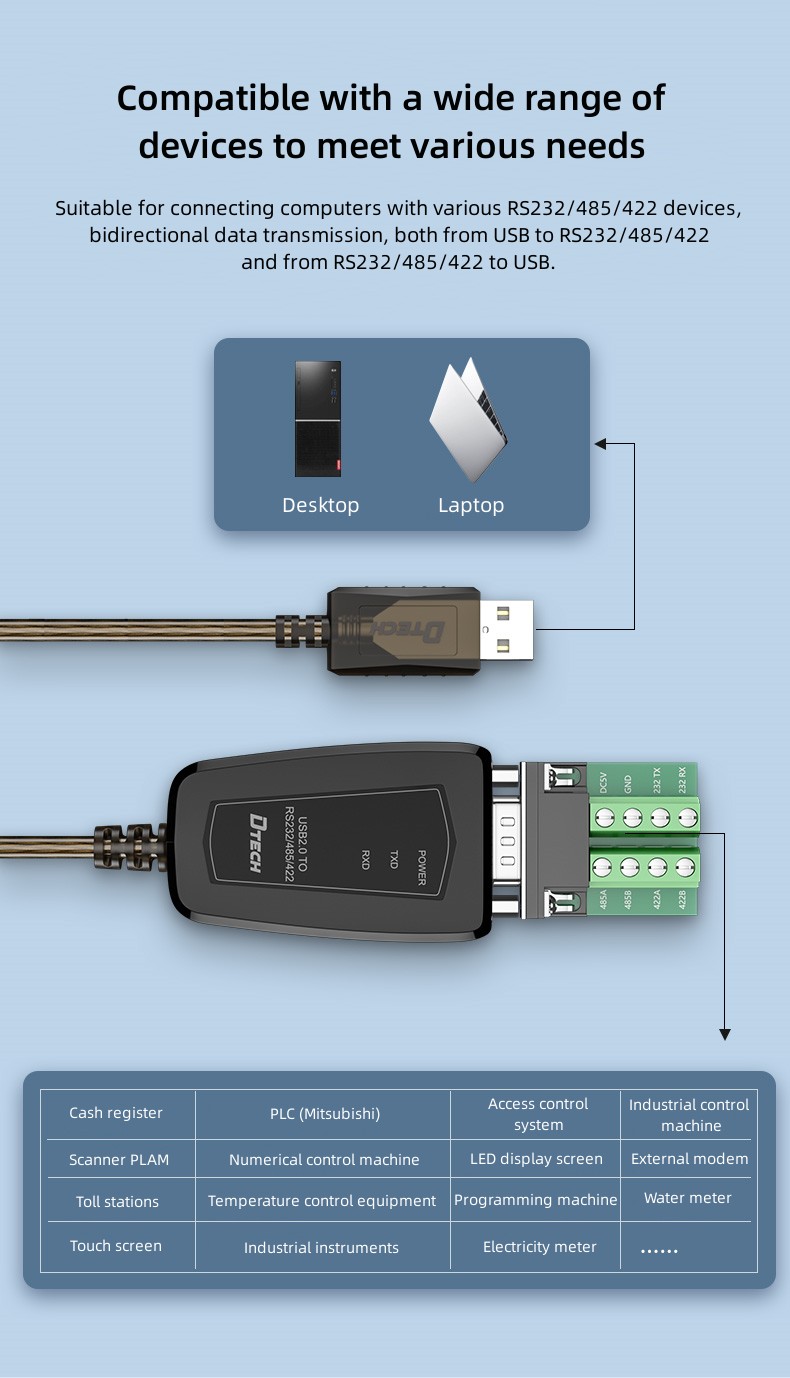

Compatible with a wide range of devices to meet various needs

Suitable for connecting computers with various RS232/485/422 devices, bidirectional data transmission, both from USB to RS232/485/ 422 and from RS232/485/422 to USB.






A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
