Dual mode, no need to worry about clutter
1) Standard Line Finding
Suitable for searching in ordinary places.
2) Anti Interference Line Finding
Suitable for switches and long distance line search.
Product Origin:
ChinaItem NO.:
DT-TXJ006Shipping Port:
Guangzhou/ShenzhenCable Continuity Ethernet Length Tester Anti-interference POE Multipurpose Network Communication Digital Line Finder
Ⅰ. Product Parameters
|
Product Name |
Multifunctional Digital Signal Line Finder |
|
Model |
DT-TXJ006 |
|
Function |
Find/align/measure cables |
|
Port |
RJ45, POE |
|
Withstand Voltage |
POE supports 60V |
|
Working Humidity |
30% -90% |
|
Working Temperature |
-10 °C~+50 °C |
|
Transmission Distance |
The search distance can reach up to>=305 meters |
| Color | Black |
|
Warranty |
1 Year |
Ⅲ. Product Description

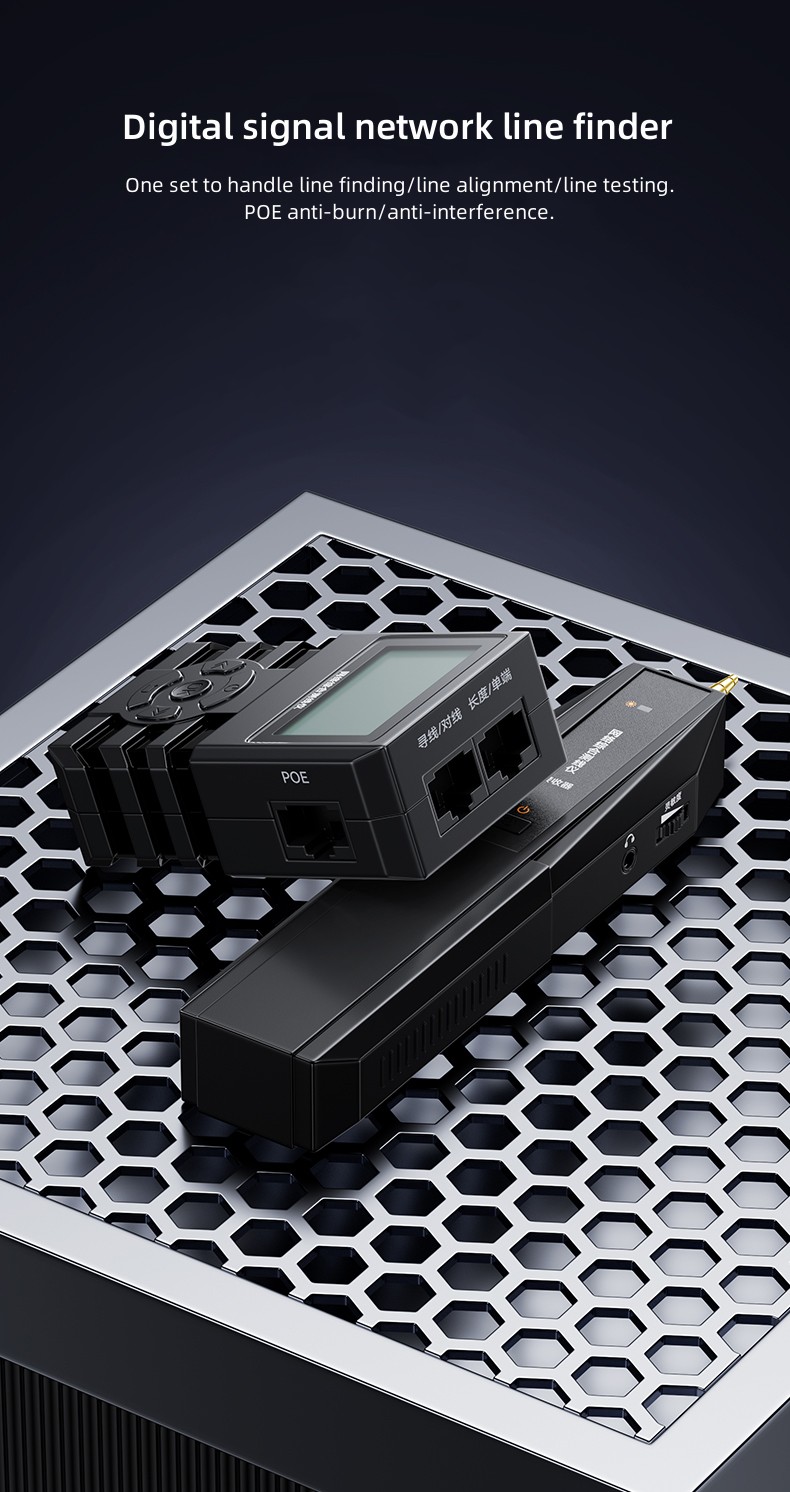

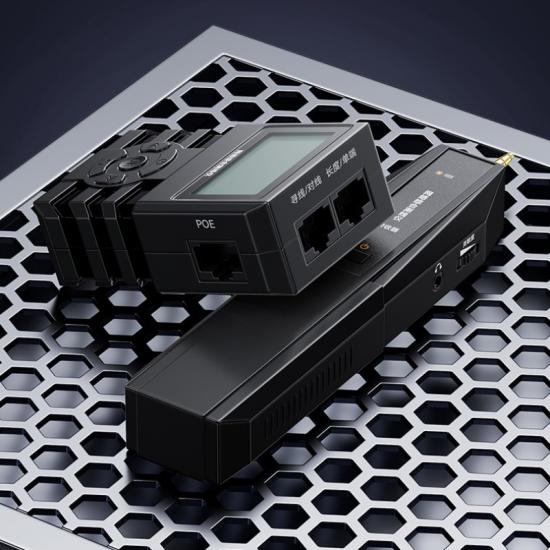

Digital signal network line finder
One set to handle line finding/line alignment/line testing.
POE anti-burn/anti-interference.

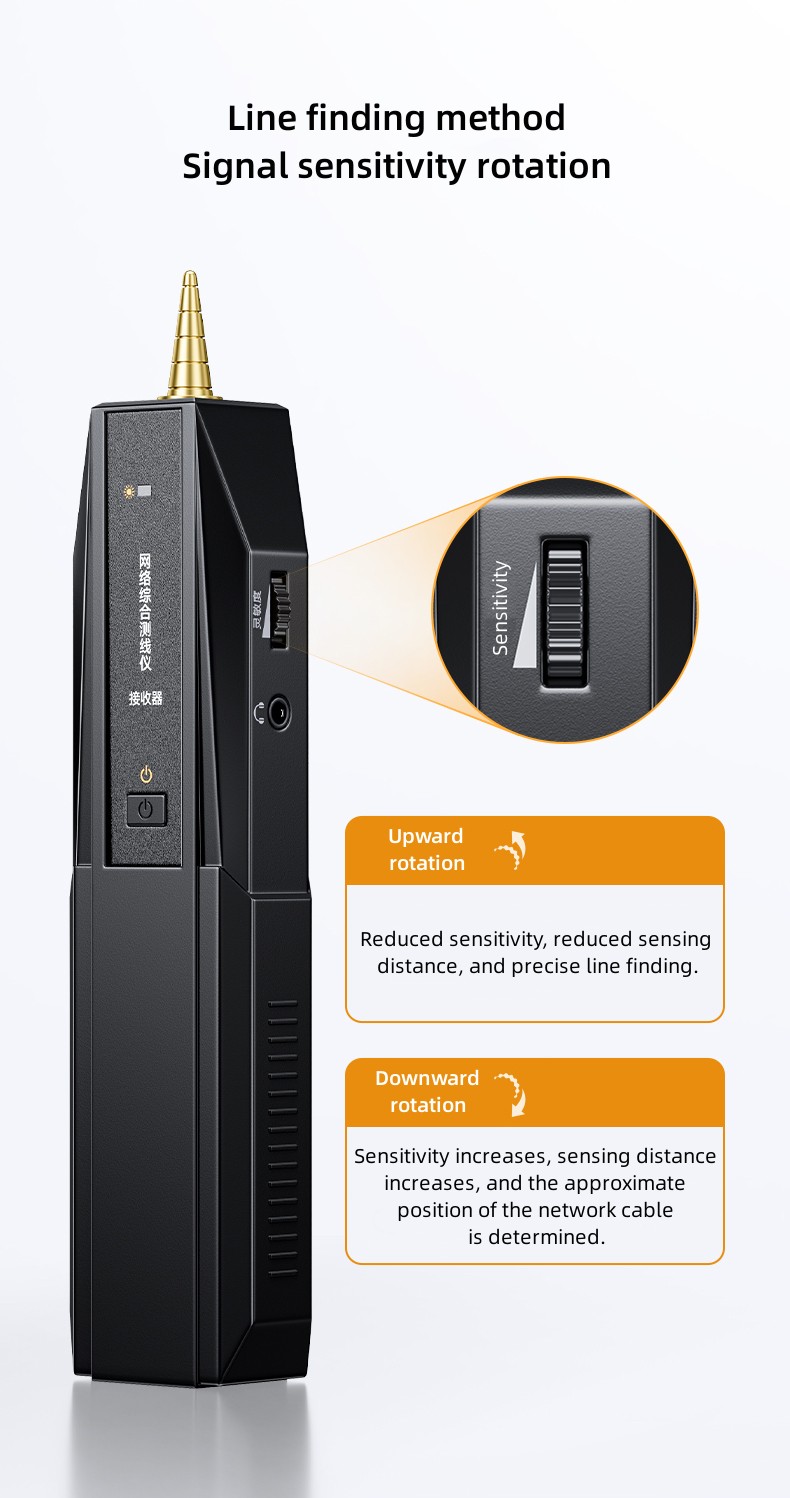

Line finding method
Signal sensitivity rotation
1) Upward rotation
Reduced sensitivity, reduced sensing distance, and precise line finding.
2) Downward rotation
Sensitivity increases, sensing distance increases, and the approximate position of the network cable is determined.

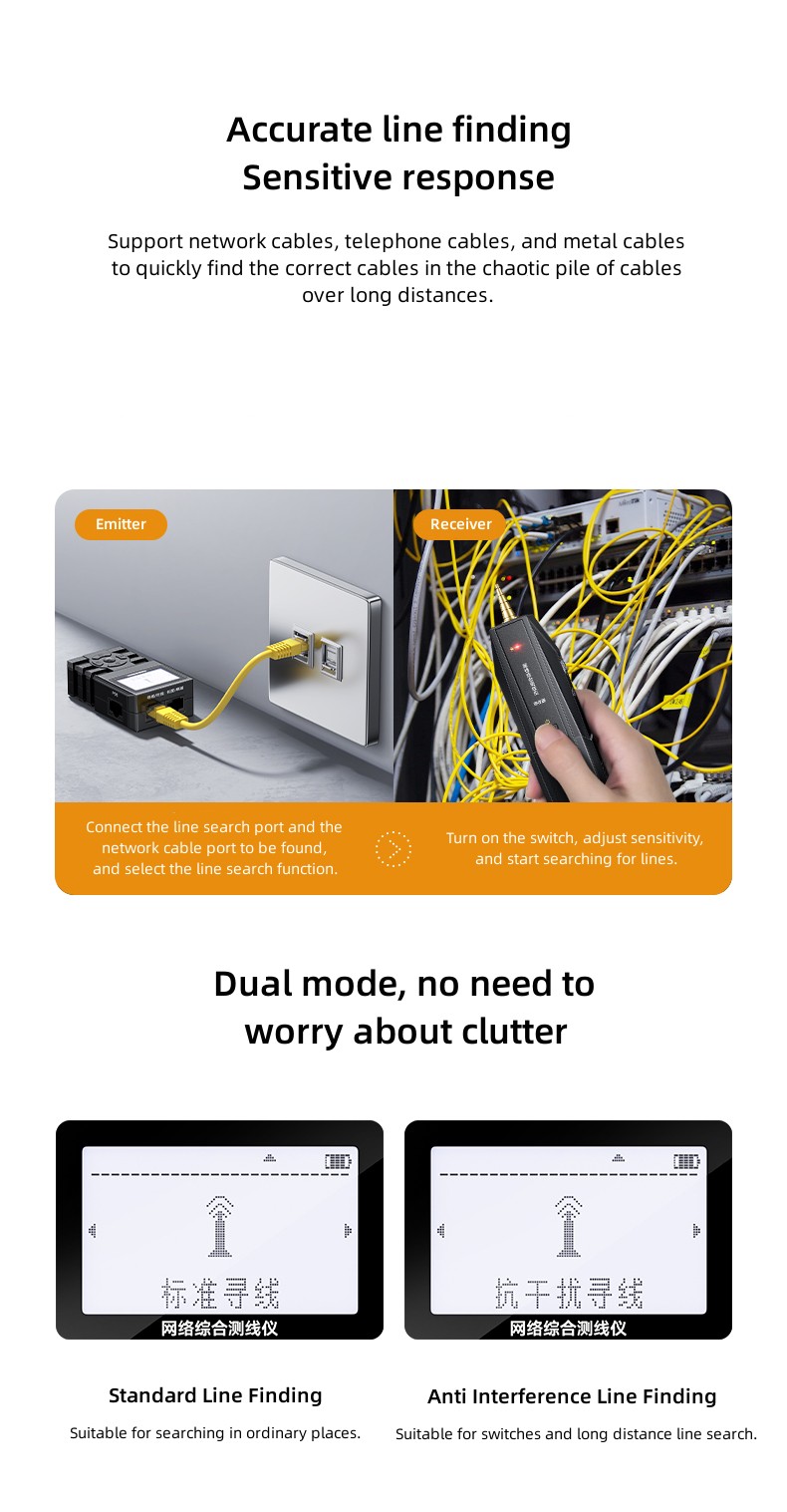

Accurate line finding
Sensitive response
Support network cables, telephone cables, and metal cables to quickly find the correct cables in the chaotic pile of cables over long distances.
1) Emitter
Connect the line search port and the network cable port to be found, and select the line search function.
2) Receiver
Turn on the switch, adjust sensitivity, and start searching for lines.

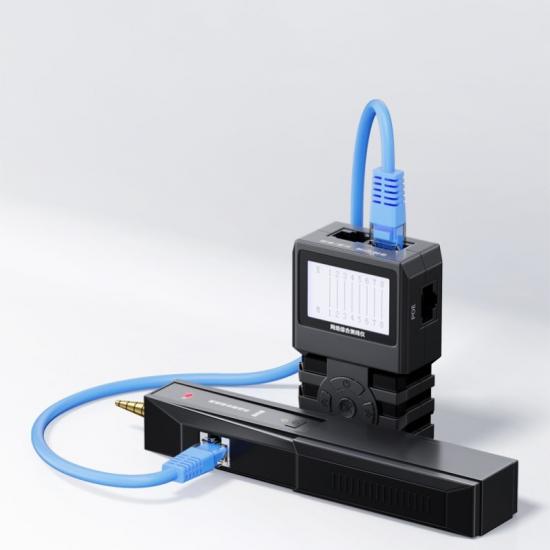

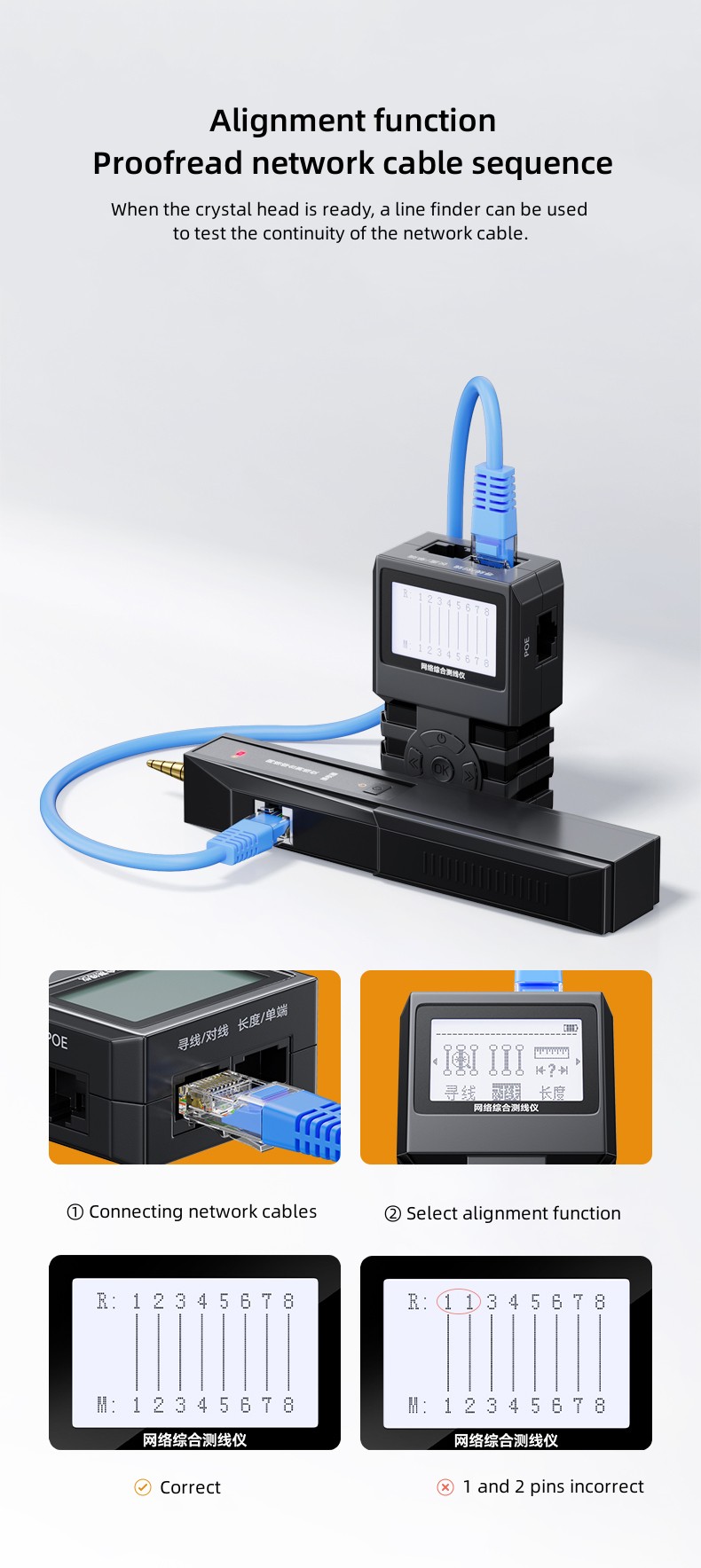

Alignment function
Proofread network cable sequence
When the crystal head is ready, a line finder can be used to test the continuity of the network cable.

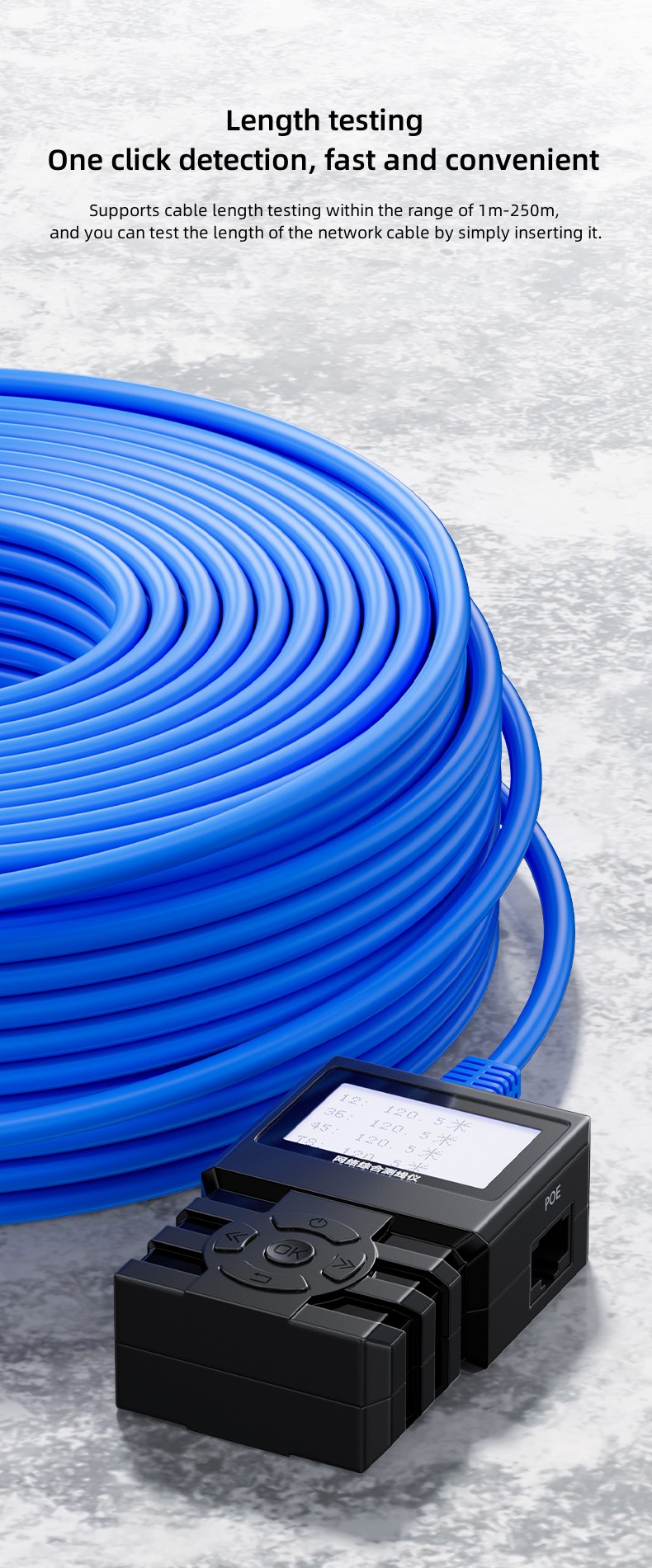

Length testing
One click detection, fast and convenient
Supports cable length testing within the range of 1m-250m, and you can test the length of the network cable by simply inserting it.

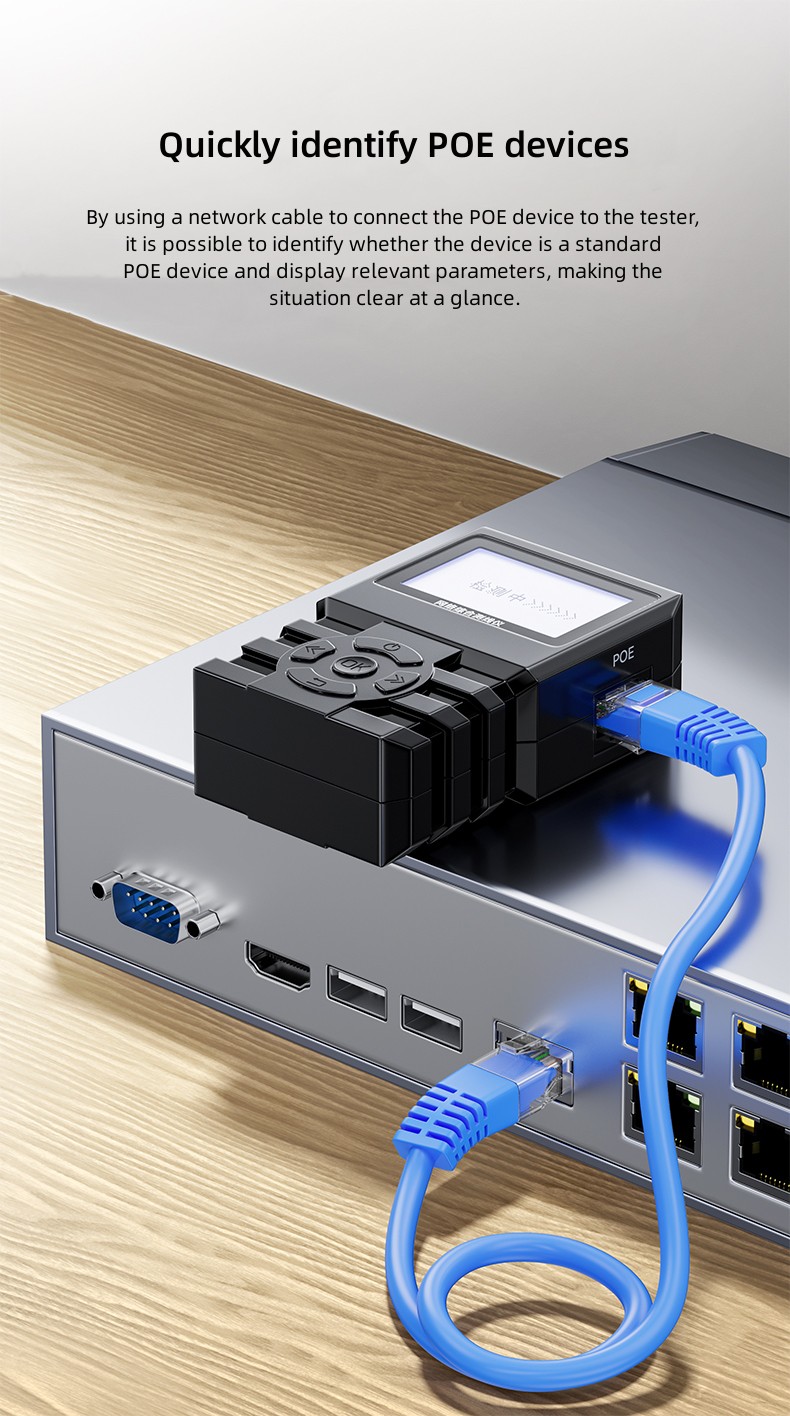

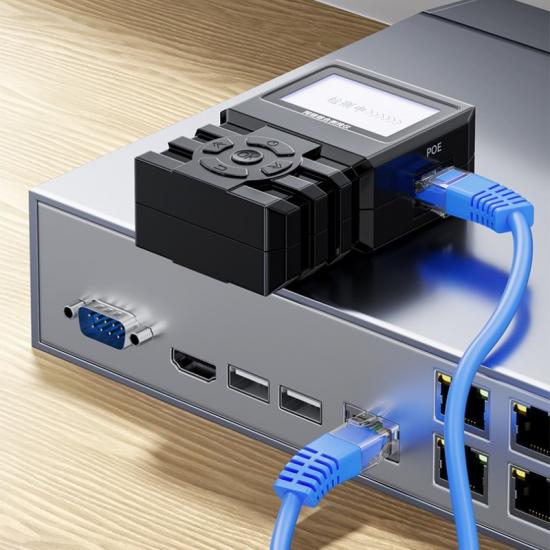

Quickly identify POE devices
By using a network cable to connect the POE device to the tester, it is possible to identify whether the device is a standard POE device and display relevant parameters, making the situation clear at a glance.

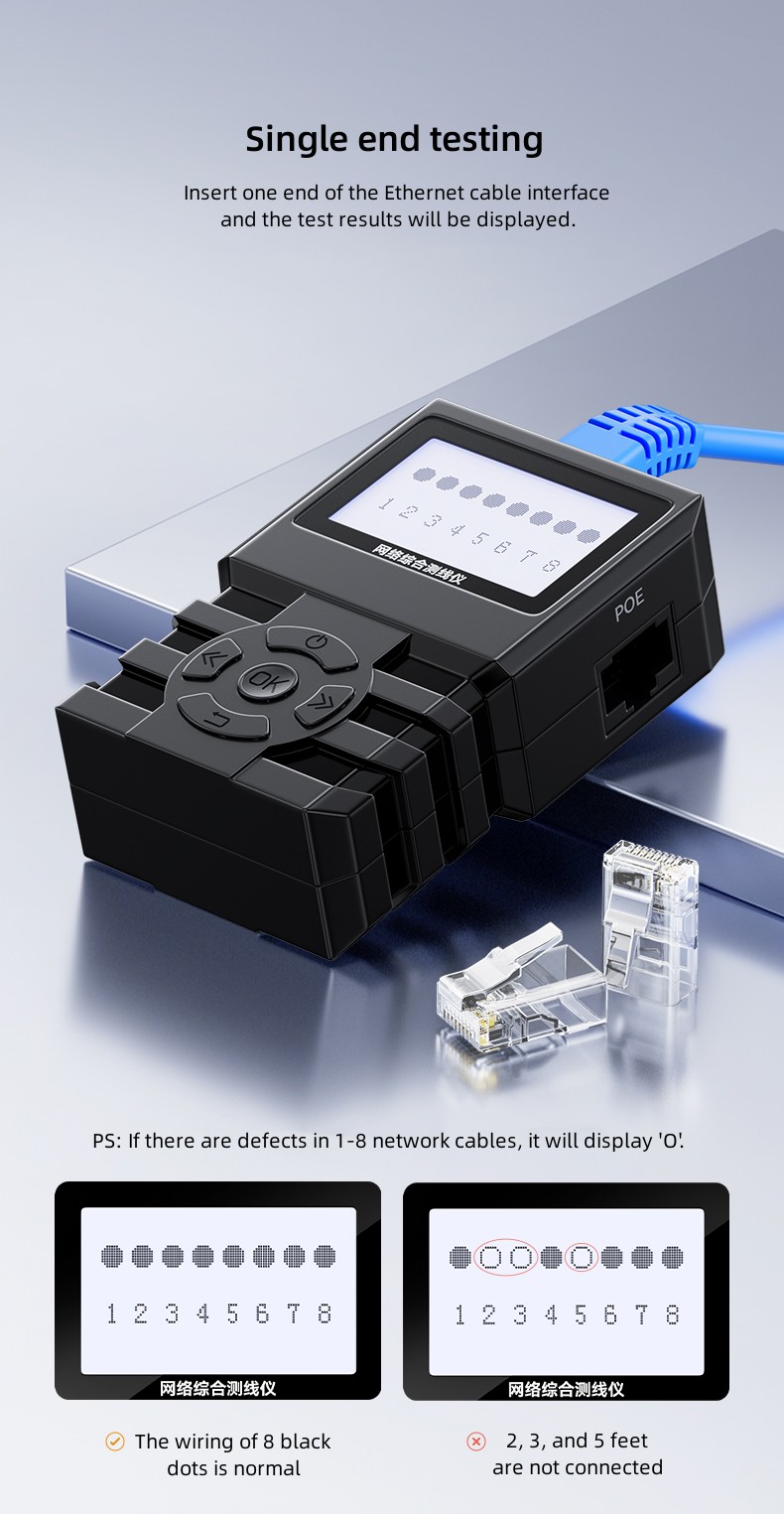

Single end testing
Insert one end of the Ethernet cable interface and the test results will be displayed.
PS: If there are defects in 1-8 network cables, it will display 'O'.

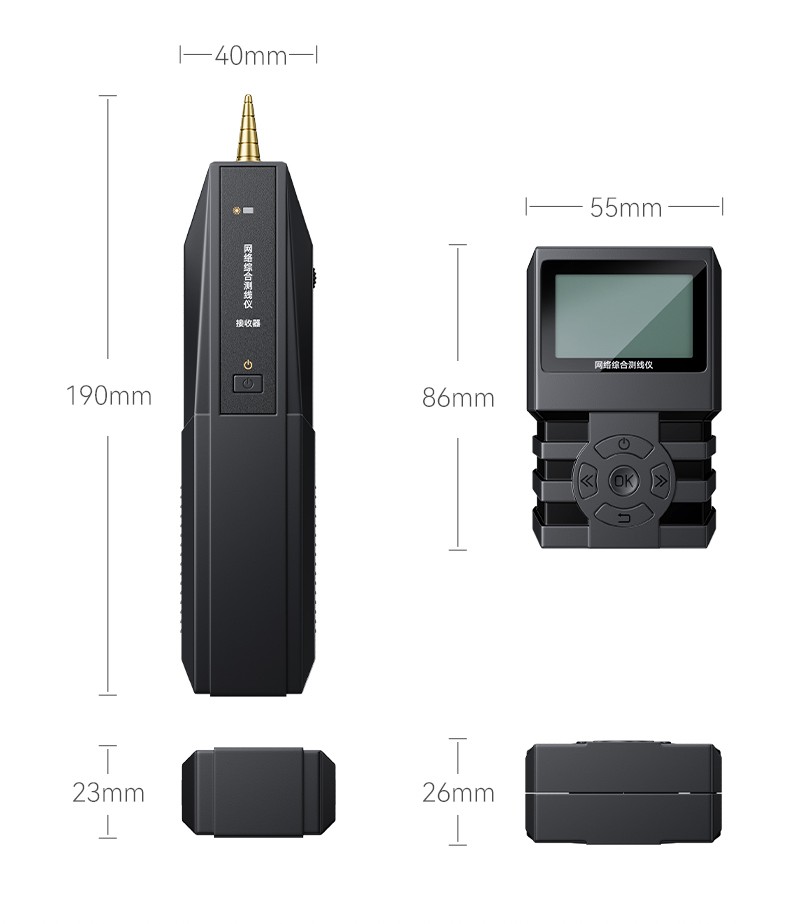

Ⅳ. Product Size

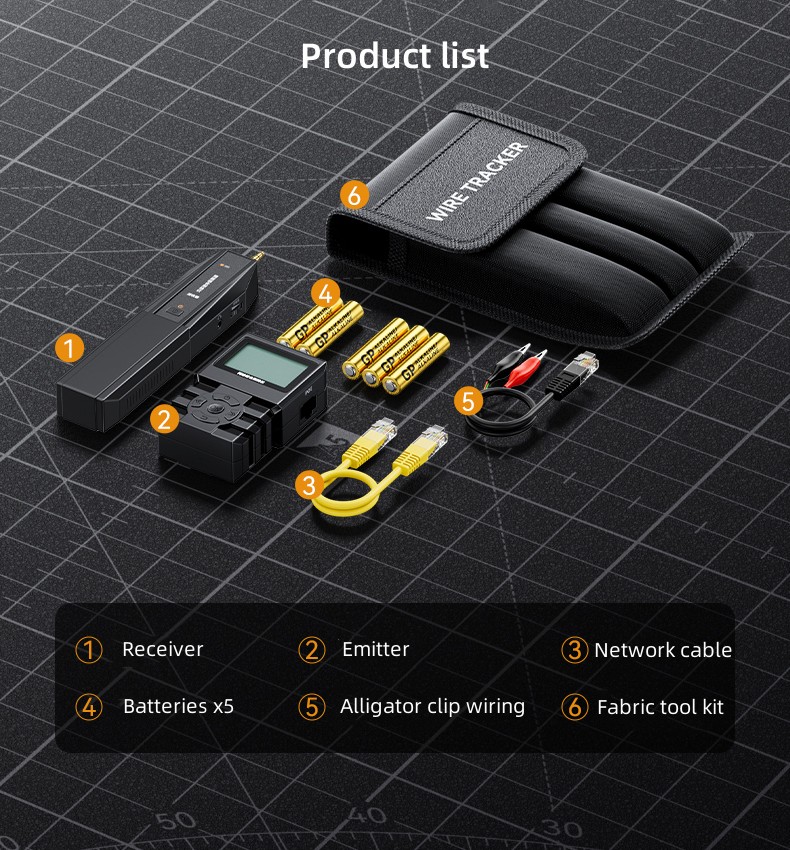

Ⅴ. Product List
