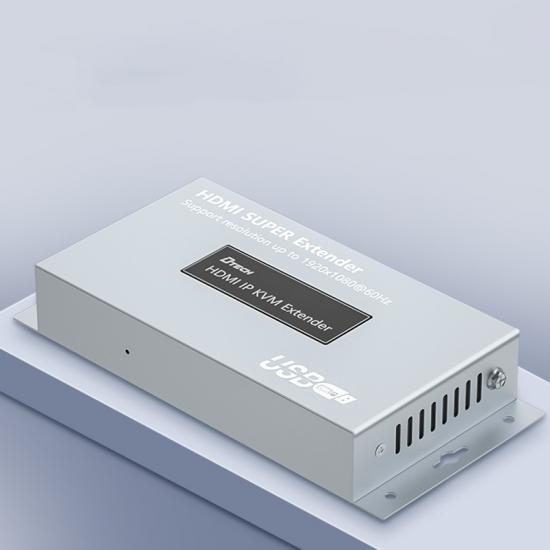

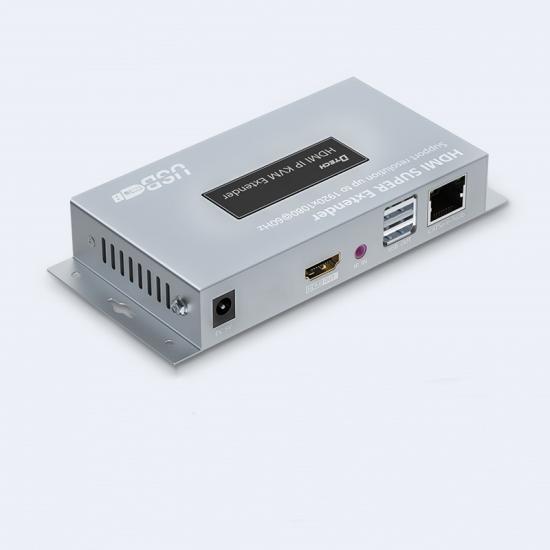

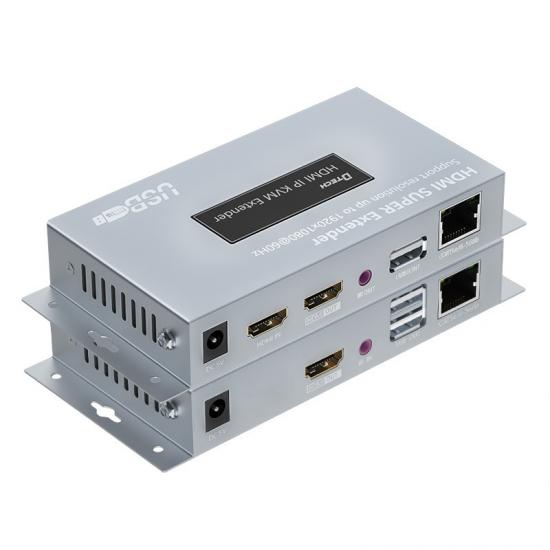

HDMI IP KVM Extender 150m
Product Origin:
ChinaBrand:
DTECHItem NO.:
DT-7050（AM）Shipping Port:
guangzhou/shenzhenDTECH 150M Audio Video HDMI Signal Extender Supports 1080P@60Hz IP KVM HDMI USB Extender One to Many
Ⅰ. Product description
This HD Resolution Extender consists of a transmitter and a receiver. The transmitter is responsible for the acquisition and compression of the signal, the receiver is responsible for the decoding and port assignment of the signal, and the transmission medium is high-quality cat5e/cat6 patch cable. The product extends the audio and video signals to the far end through the network cable, which can be extended by multi-level connection of the switch, and can also realize one transmitter and multiple receivers. After the product is extended, the remote image restoration effect is clear and natural, without obvious attenuation, and also increases the lightning protection and anti-interference performance, which has the characteristics of good stability and clear image. Widely used in computer teaching system, high-quality multimedia display, video conference, computer, LCD plasma high-definition display venue, digital home theater, exhibition, education, finance, scientific research, meteorology and other fields.
Ⅱ. Product function parameters
(1) Support Cat5e/Cat6e/single shielded/unshielded twisted pair real-time point-to-point, point-to-multipoint transmission of image and audio signals;
(2) HDMI signal supports 1080P@60Hz resolution, backward compatible with multiple resolutions;
(3) Products with USB interface support remote operation of keyboard and mouse;
(4) Products with infrared interface support IR infrared return function;
(5) Cascading and amplifying transmission can be achieved through relay equipment such as switches/routers, and H.264 products can be extended by 300 meters through cascading;
(6) Using HDMI standard cable, the transmission distance of the input end can reach 10 meters, and the transmission distance of the output end can reach 5 meters.
Previous :
DTECH 4K HDMI Extender via Ethernet Video Transmitter Receiver Converter HDMI Cable Cascading ExtenderNext :
DTECH H.264 1080P@60Hz One to Many with IR Remote 150M HDMI IP Super Extender
This extender support HDMI 1080P@60HZ resolution, extension distance can be up to 100m via cat5e/6 cable, the far end picture effect is clear and natural with no obvious attenuation.
Ⅰ. Introduction This extender support HDMI 1080P@60HZ resolution, extension distance can be up to 100m via cat5e/6 cable, the far end picture effect is clear and natural with no obvious attenuation. Besides, it added a IR back function, convenient to control the display’s switch, adjust volume, switch the channel. It can be widely used for computer education system, high quality multimedia display, video conference, LCD plasma HD display venue, digital home theatre, exhibition, education, financial, scientific research, meteorology etc.
I.Product introduction: This Extender supports HDMI 4K resolution with a maximum resolution up to 3840 x 2160 @30hz.Using single LAN cable Cat5e/6 to extend 100m.The function of IR cycle can facilitate user to control the display switch, adjust the volume and switch the channel channel. Widely used in computer teaching system, high quality multimedia display, LCD plasma high-definition video conferencing, meter machine, display hall, digital home theater, exhibition, education, finance, scientific research, meteorology and other fields.
This is a product of HDMI IP extender, which can extend HD signals up to 150 meters via single cat 5e/cat6 cable and the resolution can up to 1080P. If over 150 meters, can be extended by multi-level connection via switch/router. In addition, it can realize cascading transmission without switch or router. It is widely used in computer teaching system, high-quality multimedia display, video conference, computer, LCD plasma hd display venue, digital home theater, exhibition, education, finance, scientific research, meteorology and other fields.
DTECH DT-7042 HDMI Repeater 50M
DTECH DT-7009A HDMI extender over cat6 60m can support resolution up to 1080P.
DTECH DT-7046S ip extender extends HDMI signal up to 120m with a cat6 cable and support 1080P.
DTECH DT-7046R ip extender extends HDMI signal up to 120m with a cat6 cable and support 1080P.
DTECH DT-7047S POE IP extender extends HDMI signal up to 120m with a cat6 cable and support 1080P.
DTECH DT-7047R POE IP extender extends HDMI signal up to 120m with a cat6 cable and support 1080P.
HDMI Super Extender with IR 60m (single cable) DT-7009I
