Applicable to devices with standard HDMI interface, compatible with versions below 2.1
Product Origin:
ChinaBrand:
DTECHItem NO.:
DT-HF8050KShipping Port:

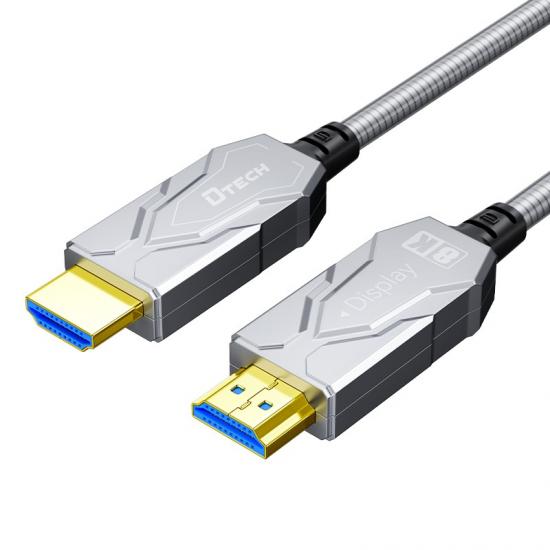

Guangzhou/ShenzhenDTECH 50m 100m 150m HDMI 2.1 Version 8K 60Hz Male to Male HDR Video Cable 48Gbps Armor Fiber Optic HDMI Cable
Ⅰ.Product Parameters
Product Name | 8K HDMI Armored Fiber Optic Cable |
Brand | DTECH |
Model | DT-HF8050K |
Cable Length | 1m/2m/3m/5m/10m/15m/20m/25m/30m/35m/40m/45m/50m/60m/70m/80m/90m/100m/150m |
Function | Audio and video transmission |
Version | HDMI 2.1 |
Core | Fiber optic+copper core |
Gender | M-M |
Resolution | 7680*4320 |
Bandwidth | 48Gbps |
Cable Body | PVC |
Connector | Gold plated |
Refresh Rate | 8K/60Hz, 4K/120Hz, 2K/144Hz |
Warranty | 1 Year |
Ⅱ.Product Description
Stainless steel armor protection
HDMI2.1 optical fiber cable 8K 60Hz
Tensile resistance | Compression resistance | Waterproof | Outdoor | Anti-bite
①HD lossless transmission
8K@60Hz/4K@120Hz
②Fiber core
③Dynamic HDR
Clear light and dark
④12Bit color depth
Professional standard
⑤48Gbps
High-speed total bandwidth
⑥eARC
Audio return
⑦HDMI2.1
Gold-plated connector
⑧7680*4320
⑨DOLBY AUDIO
Strong steel armor
Easily cope with industrial environments
Adopt a thick steel armor protective layer to solve the shortcomings of traditional optical fiber HDMI cables, such as poor tensile and compressive resistance, being bitten when used outdoors, and having a short lifespan.
8K giant screen, connecting the future
IMAX-level visual experience
HDMI2.1 48Gbps total bandwidth, supports 8K@60Hz high-definition resolution, a larger and clearer field of view, say goodbye to graininess and blur, a new vision, and a brand new picture quality experience.
Optical fiber core transmission, no signal attenuation
Using 4-core optical fiber to transmit optical signals, high-speed and stable, avoiding mutual interference between high-frequency signals and electromagnetic interference, it can support 100-meter transmission, meeting the needs of long-distance decoration pre-embedded, no delay, no attenuation, no interference.
① 4-core optical fiber
② High quality copper core
③ Anti interference aluminum foil
④ Pure copper ground wire
⑤ Shielding Net
⑥ Anti fracture threaded steel
⑦ Transparent PVC outer cover
HD photoelectric conversion module
The signal is more stable
Both ends of the interface are equipped with high-performance conversion chips to adapt to various complex electromagnetic environments.
Photoelectric signals are instantly converted to each other, and the picture is transmitted with high quality.
Pre-embedded
Easily build a home theater
The full length of 100 meters supports HDMI2.1, long-distance transmission is still stable, reducing distance restrictions, suitable for home pre-embedded and engineering wiring.
HDMI fiber optic installation
HDMI optical fiber cables are all unidirectional transmission. Please pay attention to distinguish the direction before wiring.
There are markings on both ends of the HDMI connector:
Source end is connected to the output device, and Display end is connected to the display device. Test before construction and do not connect it in reverse.
Support HDR dynamic display
Real and natural light and dark contrast
Dynamic HDR provides more dynamic range and image details, brighter highlights, clearer dark areas, and a more deep and realistic picture.
ARC audio return function
Audio and video synchronization output
Enhanced Audio Return Channel (ARC), Quick Media Switching (QMS) image and sound synchronization is faster, experience more realistic immersive surround sound.
Delicate colors
Meet the needs of professional studios
Supports 12-bit color depth, the gradient layering of color channels is more delicate and rich, and is suitable for 8K/4K editing 1:1 high-definition preview, meeting professional adaptation or image processing needs.
No electromagnetic interference, no delay
Adapt to various harsh environments
Fiber optic signal transmission solves the electromagnetic interference and signal attenuation caused by the transmission of high-frequency signals by metal conductors in the past, and has amazing adaptability to various harsh electromagnetic interference environments.
Ⅲ.Product Size
