Guangzhou/ShenzhenDTECH Industrial 485 Transmitter Receiver Wireless RS485 Serial to BT Communication Adapter
Ⅰ. Product Parameters
| Product Name | RS485 Serial BT Adapter |
| Model | IOT5064A |
|
Function |
Data Transmission |
|
Weight |
195G ± 5G |
|
Transmission Distance |
100M |
|
Working Voltage |
DC5V |
|
Environmental Temperature |
-20-80 ° C |
|
Baud Rate |
RS232 supports 115200bps; RS485 supports 1Mbps |
|
Check Code |
NONE |
|
Data Bits |
8 |
|
Stop Position |
1 |
|
Modulation Method |
Professional software modulation |
|
Transmission Byte |
14400 bytes |
|
System Support |
Android/Windows XP/7/8/10/11/Linux and other operating systems |
|
Color |
White |
| Warranty | 1 Year |
Ⅱ. Product Description
Wireless communication, three modes
Serial port to BT wireless converter
BT communication transmission/plug and play without wiring
Switch and router debugging
It can be used to debug and configure communications for switches, routers, servers, industrial machinery and other devices with RJ45 Console interfaces. It can be configured directly using a computer or mobile phone without wiring.
Product functions
Baud rate range RS232 supports 115200bps, RS485 supports 1Mbps.
Supports two configurations: serial port AT configuration and BT transmission configuration.
Supports 3 modes
① Broadcast mode
② Host mode
③ Slave mode
Serial to BT wireless communication device selection
Mobile phone and device transmission
Support BT adapter and serial BT communication, mobile phone can directly connect to the device to receive data.
Electric meter/Elevator controller/PLC/Inverter/Monitoring tower, etc.
Three modes
Serial port to BT wireless communication supports broadcast mode, host mode, and slave mode, wireless communication, plug and play without wiring.
①No need for network coverage
②Comes with wireless transmission and reception
③No need for network traffic card
④Ready to use upon startup
Multiple devices available
The product provides standard serial port signals, only recognizes signals but not devices, and all serial port signal devices can be used.
1. Industrial application industrial control computer Q-bed, industrial automation instruments, remote irrigation device, access control, security control system, highway scale data transmission, commercial cash register and other device connections.
2. Slowly changing physical quantities, ultra-low power sensors
Temperature, water pressure, PM2.5, electromagnetic sensors, etc.
3. Wireless meter reading
Smart meters, smart water meters, smart gas meters, heat meters, etc.
4. Remote I/O controller
Lighting control, air conditioning control, etc.
5. Wireless alarm
Smoke detectors, thermal infrared detectors, etc.
Stable communication
RS232/485 serial port to BT wireless converter, large capacity, lower battery consumption. With low power consumption mode, RS232/485 charging can last for 24 hours.
Barrier free transmission
High gain, high receiving sensitivity, and strong wall penetration ability. Compared to LORA products, it can transmit more data at the same distance, with faster transmission speed and no packet loss. The transmission distance can reach up to 100 meters in an effective usage environment.
Indicator working status
① Blue indicator flashes: BT slave mode (waiting for pairing and connection)
② Blue indicator off: BT paired and connected
③ Blue indicator stays on: BT host mode (set to host mode)
④ Blue indicator flashes briefly: BT is sending and receiving data
III. Product Size

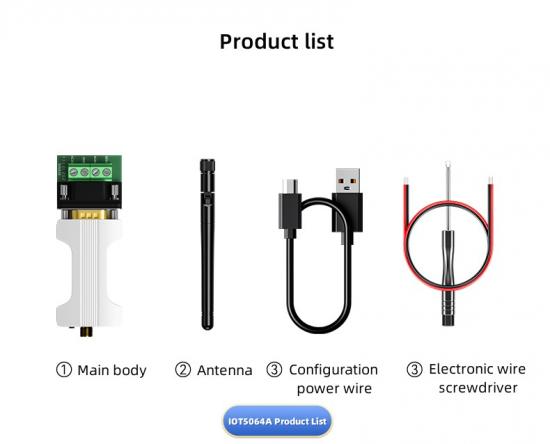

Ⅳ. Product List

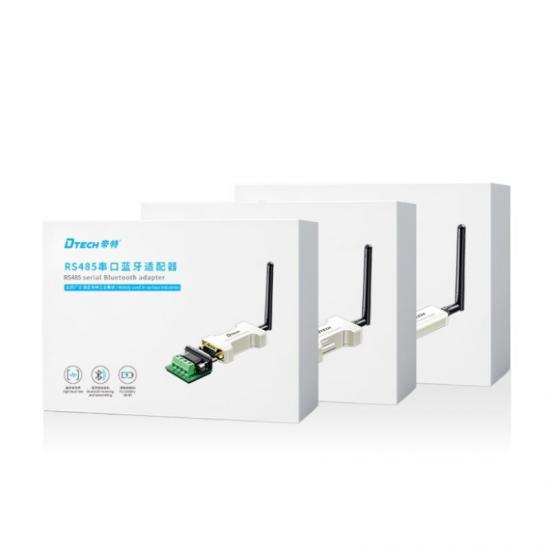

Ⅴ. Product Packaging
