DTECH Male to Male USB A 3.0 and Type C Dual Connector to 9Pin DB9 RS232 Serial Adapter Cable Multi system compatibility more
Multi system compatibility
Product Origin:
ChinaBrand:
DTECHItem NO.:
IOT5066AShipping Port:
Guangzhou/ShenzhenDTECH Male to Male USB A 3.0 and Type C Dual Connector to 9Pin DB9 RS232 Serial Adapter Cable
Ⅰ. Product Parameters
| Product Name | Type-C+USB3.0 to RS232 Serial Cable |
| Model | IOT5066A |
| Product Chip | PL2303GC |
| Product Material | Tin plated copper core, PVC jacket, Aluminum foil |
| Compatibility Standard | Interface compatible with EIA/TIA RS-232 standard |
| Baud Rate | 300bps-115200bps |
| USB Signal | VCC, DATA+, DATA -, GND |
| RS-232 Signal | DCD RXD、TXD、DTR、GND、DSR、RTS、CTS、RI |
| Interface Description | Type-C male, USBA male, RS-232 interface: DB9 pin |
| Power Supply Method | USB power supply |
| Voltage Range | 5V |
| Cable Length | 0.5m/1m/1.5m/2m/3m |
| Warranty | 1 Year |
Ⅱ. Product Description
Serial cable used by senior engineers
Type-C+USB3.0 to RS232 serial port cable
① Imported chips
PL2303GC chip
② High speed baud rate
300bps-115200bps
③ Stable communication
High-quality
④ Two types of interfaces
Type C + USB 3.0
⑤ Industrial grade cable
Stable
⑥ Multi system compatibility
Support Win8-10-11
Suitable for multiple devices
Meet different needs
Suitable for connecting various RS232 serial devices to computers.
Supports multiple systems compatibility
Supports Win11, 10, 8 and Linux and other systems. Provide scanning card driver and installation manual, one click installation, worry free and effortless.
PS: Win8/10 automatically updates the driver when connected to the Internet, and Linux4.0 and above do not require a driver.
PLC programming
Stable and smooth
Compatible with PLC encoding from Mitsubishi, Siemens, Delta, Omron, etc., stable transmission without garbled characters, instant, and no packet loss.
Weighing&Efficient Cashier
Connect the computer to the cash register or electronic scale, read quickly without lagging, and check out without waiting.

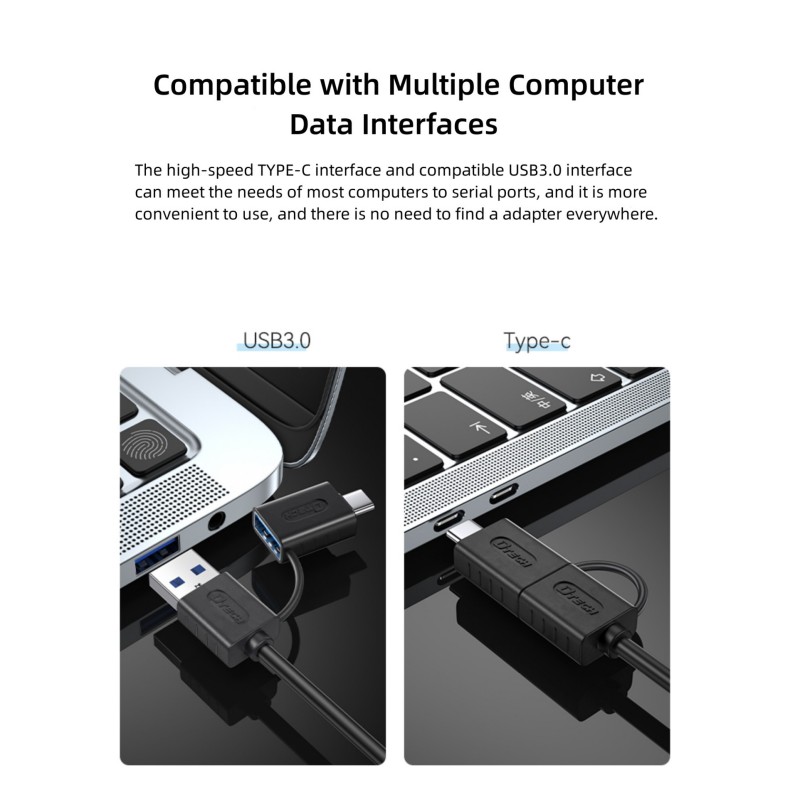

Compatible with multiple computer data interfaces
The high-speed TYPE-C interface and compatible USB3.0 interface can meet the needs of most computers to serial ports, and it is more convenient to use, and there is no need to find a adapter everywhere.
Stable transmission
Equipped with imported PL2303GC professional grade chip, signal transmission is high-speed and stable, data security is not lost, compatibility is strong, high-speed and stable.
PS: The chip/circuit is a rendered image, and the internal structure is not fully displayed. Please refer to the actual product for accuracy.
High speed baud rate
The baud rate range for data communication is 300bps-115200bps, so you no longer have to worry about insufficient transmission speed.
Double shielding
High speed transmission
Thick tin plated copper core, with aluminum foil and metal mesh screen hidden layer, multiple shielding and interference isolation, baud rate can reach 300bps-115200bps, and serial communication has fast data transmission speed.
①7-wire copper core transmission layer
②Eco-friendly inner cover
③Aluminum foil double-layer shielding
④4 tension cords
⑤Eco-friendly PVC outer cover

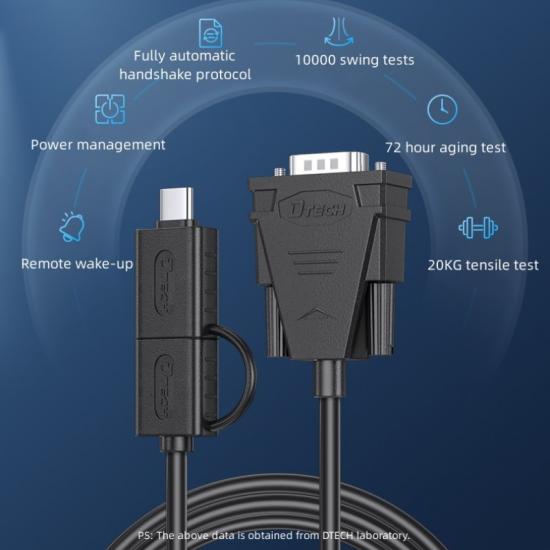

Powerful performance
More technical support
①Remote wake-up
②Power management
③Fully automatic handshake protocol
④10000 swing tests
⑤72 hour aging test
⑥20KG tensile test
PS: The above data is obtained from DTECH laboratory.
Ⅲ. Product Packaging
