Welcome to use my company's high quality video conversion series products!
The product breaks the distance limit of the HDMI cable and can extend the HDMI signal to 10-60 meters using a single cable. Widely used in high-definition LCD TV sales display places, data release, information release, conference rooms, schools and various training places.
Product Origin:
chinaBrand:
DTECHItem NO.:
dt-7073Shipping Port:

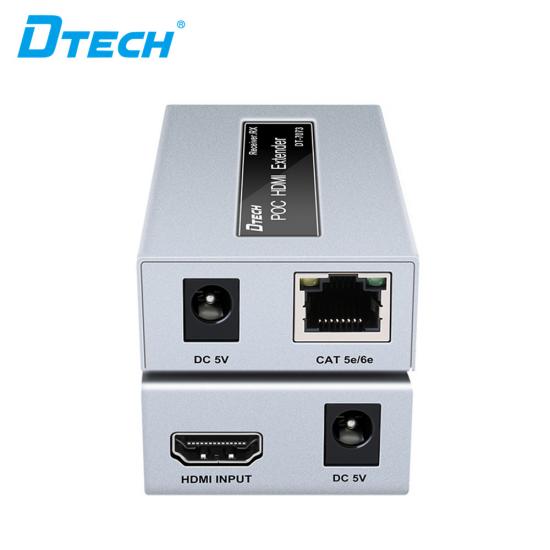

guangzhou/shenzhen3. Insert the power supply to the [DC 5V] port
Product function parameter
(1) Support 3D, support the highest format 1080P
(2) the HDMI formats: 480 I/I / 576 p / 480 p / 576 720 I / 720 p / 1080 I / 1080 p
(3) HDMI signal bandwidth: 225MHz/2.5Gbps
(4) Support 24 bit / 30 bit /36 bit /48 bit dark color
(5) Support BLU-ray Blu-Ray DVD24/50/60fs/HD-DVD/XVYCC
Audio format DTS-HD, Dolby-trueHD, LPCM7.1, DTS, DOLBY-AC3, DSD, HD(HBR)

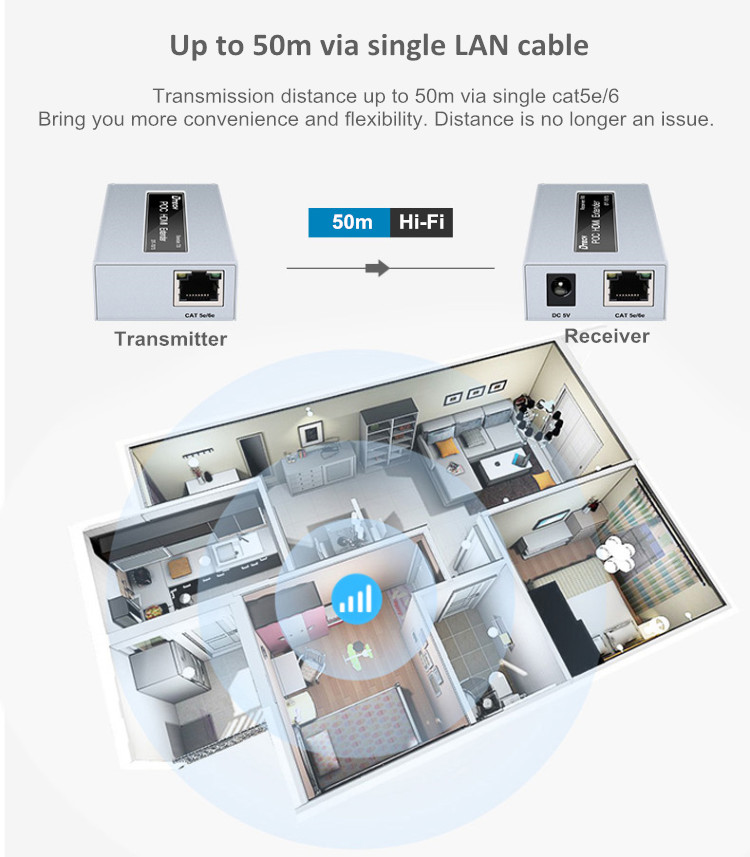

(7) It can be extended to 40 meters by using Class 5 network cable, 50 meters by using more than Class 5 network cable, and 60 meters by using Class 6 network cable

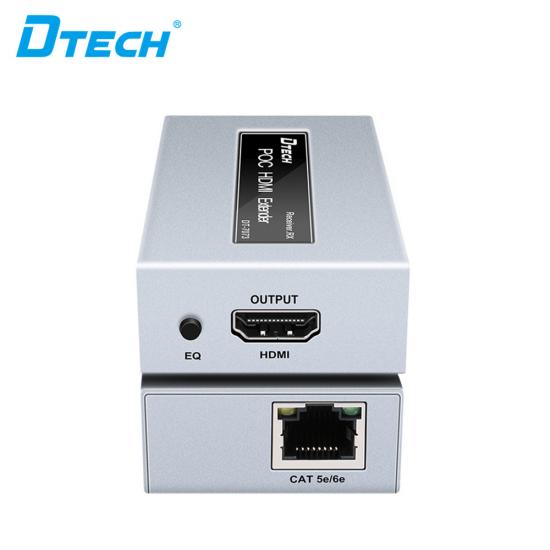

(8) EQ automatic adjustment button is set at the receiving end, and adjusting this button can make signal transmission more stable
Previous :
POC HDMI extender 50m hdmi extender 50m meters 1080p@60hz cat5e/6e receiver & transmitter extensor de hdmi for projectorNext :
HDMI USB 2.0 KVM Extender 50M Matel Shell Silver 1080P 60HZ DC5V Cat5e 6 24AWG 28AWG IR Remote Control
This extender support HDMI 1080P@60HZ resolution, extension distance can be up to 100m via cat5e/6 cable, the far end picture effect is clear and natural with no obvious attenuation.
Ⅰ. Introduction This extender support HDMI 1080P@60HZ resolution, extension distance can be up to 100m via cat5e/6 cable, the far end picture effect is clear and natural with no obvious attenuation. Besides, it added a IR back function, convenient to control the display’s switch, adjust volume, switch the channel. It can be widely used for computer education system, high quality multimedia display, video conference, LCD plasma HD display venue, digital home theatre, exhibition, education, financial, scientific research, meteorology etc.
I.Product introduction: This Extender supports HDMI 4K resolution with a maximum resolution up to 3840 x 2160 @30hz.Using single LAN cable Cat5e/6 to extend 100m.The function of IR cycle can facilitate user to control the display switch, adjust the volume and switch the channel channel. Widely used in computer teaching system, high quality multimedia display, LCD plasma high-definition video conferencing, meter machine, display hall, digital home theater, exhibition, education, finance, scientific research, meteorology and other fields.
This is a product of HDMI IP extender, which can extend HD signals up to 150 meters via single cat 5e/cat6 cable and the resolution can up to 1080P. If over 150 meters, can be extended by multi-level connection via switch/router. In addition, it can realize cascading transmission without switch or router. It is widely used in computer teaching system, high-quality multimedia display, video conference, computer, LCD plasma hd display venue, digital home theater, exhibition, education, finance, scientific research, meteorology and other fields.
DTECH DT-7042 HDMI Repeater 50M
DTECH DT-7009A HDMI extender over cat6 60m can support resolution up to 1080P.
DTECH DT-7046S ip extender extends HDMI signal up to 120m with a cat6 cable and support 1080P.
DTECH DT-7046R ip extender extends HDMI signal up to 120m with a cat6 cable and support 1080P.
DTECH DT-7047S POE IP extender extends HDMI signal up to 120m with a cat6 cable and support 1080P.
DTECH DT-7047R POE IP extender extends HDMI signal up to 120m with a cat6 cable and support 1080P.
HDMI Super Extender with IR 60m (single cable) DT-7009I
