. Introduction

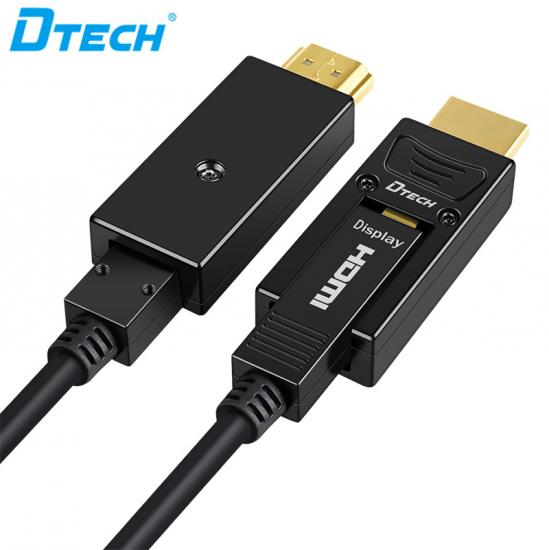

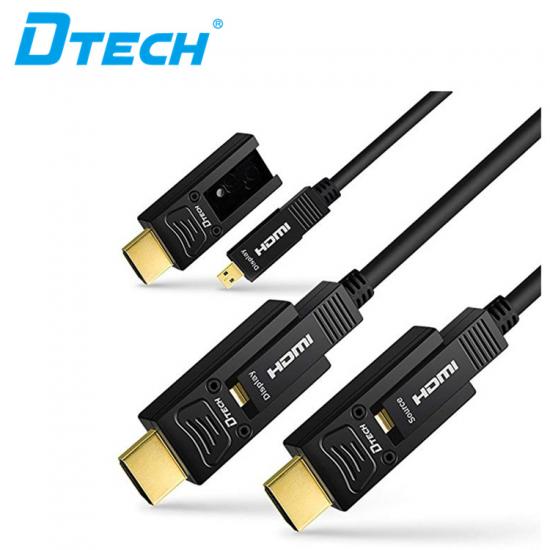

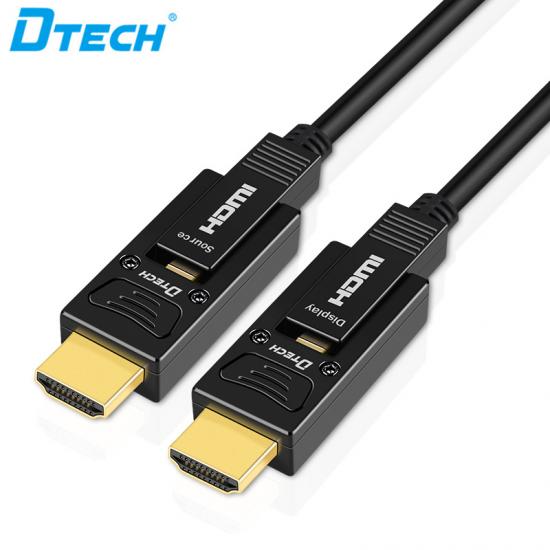

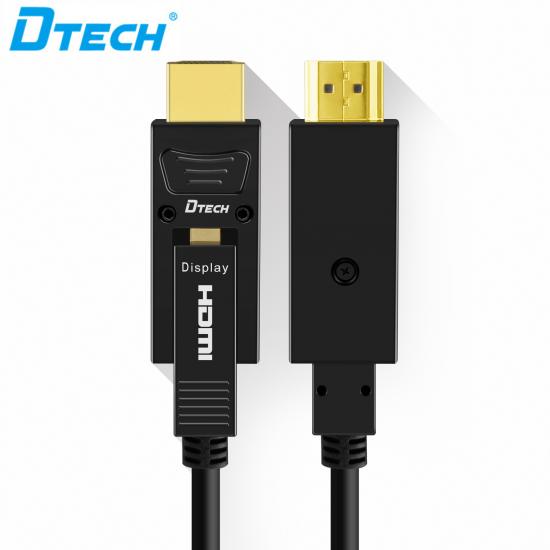

HDMI 2.0 Type D-A AOC is a fiber optic connection cable launched by us. This cable photoelectric ‘s unique core 45° FA patent technology, utilizes optical fiber as the transmission media of HDMI signal, supports HDMI2.0 protocol. It is equipped with the miniaturization Type D housing, is a mature and competitive high-definition interconnection solution in the market.
Product Origin:
chinaBrand:
DTECHItem NO.:
DT-HF0305Shipping Port:
guangzhou/shenzhen1) Type D connector has the super small dimension: 35*13.9*8.6mm, easy for poling. With built-in advanced optical engine, supports ultra long distance signal transmission. Besides, it is plug and play, no need external power supply and power amplifier unit.
2) Adopts optical fiber to transmit TMDS high frequency signals, copper wire transmit CEC, HEAC and other control signals, with good resistance to electromagnetic and radio frequency interference. It works with good stability and reliability under challenging environment.
3) The cable adopts photoelectric composite cable structure, cable cores are made up from four-core optical unit and seven-core electrical unit. Aramid yarn used as reinforcement, black PVC coat, the outer diameter is only 4.8mm.
4) It conform to HDMI2.0 protocol standard, compatible with HDMI1.4 protocol.
1. Product specification
Connector type
HDMI Type D connector, with Type Adaptor
Transmission bandwidth
18G
resolution
480P,720P,1080i,1080P,3D,4K @60Hz(4:4:4)
HDCP version
HDCP1.4/2.2
Cable specification
Composite cable: optic fiber+ copper cable
(with braid for projects)
Copper cable:AWG 28.UIT
Optic fiber: 50/125 um multi-mode optic fiber
Photoelectric converter
4 CH 850nm VCSEL/PIN
Power supply
HDMI +5V (no need external power supply)
Working current
≤45mA
Power consumption
≤250mw
support Ethernet function
NO
Include ARC
YES
1. Working temperature
Working temperature: 40-50℃ (room temperature: 20℃)
2. Operating requirements
◆Please do not beat this product or put it in moist, direct sunlight and other high temperature environment.
◆ Please keep this product far away from fire source, liquid and corrosive object.
◆ If any data or device damage caused by disassembling this product without our authority, our company do not undertake any compensation and maintenance.
Ⅲ. Product list
HDMI 444 fiber cable *1pc
Manual *1pc
Package box *1pc
Ⅳ. Application
It can be widely used for HD matrix, home theatre, commercial theatre, medical facility, factory automation, stadium, grand view hall, grand international conference center, grand international exhibition hall, TV studio, outdoor advertising, airport HD screen etc.
