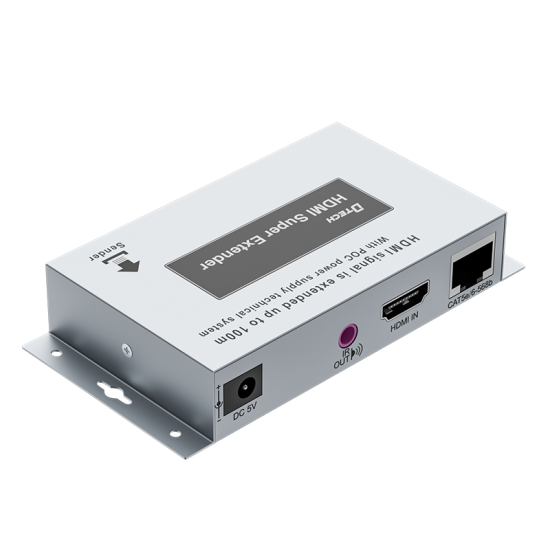

The HD resolution extender consists of a transmitter and receiver. The transmission of audio and video signals in a shallow compression mode without the need to convert signals to digital/modular or to digital before transmission; It can also be paired with broadband digital content protection to prevent unauthorized copying of copyrighted audio and video content. The product uses super five or six types of network cable after extension of the remote image restoration effect is clear and natural, no obvious attenuation. Also added IR infrared return function, convenient for users to control the display switch, adjust the volume level, switch TV channels. It is widely used in computer teaching system, high-quality multimedia display, video conference, computer, digital home theater, exhibition, education, finance, scientific research, meteorology and other fields.
Product Origin:
chinaBrand:
DTECHItem NO.:
dt-7078Shipping Port:
guangzhou/shenzhen1. HDMI audio and video signals can be transmitted over a long distance through super class 5 and 6 network cables, extending the distance up to 100 meters (Network cable requirements: Please use recommended brand network cables: Haikang, Dahua, super Class 5, Class 6 engineering with shielded network cables).
2. Support HD video signal, resolution up to 1080P@60Hz, downward compatible resolution.
3. Support IR infrared remote control;
4. Built-in automatic balancing system, smooth, clear and stable picture;
5. Built-in ESD electrostatic protection circuit, all-round protection system safety;
6. Support POC power supply (only need to connect the power supply of this product at the transmitter end)
7. The product supports the resolution of the line scanning format such as 1080P, but does not support the resolution of the interline scanning format of 1080I.
Matters needing attention
1.HDMI resolution supports 1920*1080@60Hz and does not support interline scanning format.
2. Use network cables that do not exceed specifications, which exceed Class 5 or Class 6.
3. Use the distribution power supply, this product belongs to POC power supply, use other power supply may cause instability of the product.
Product accessories
1. One transmitter
2, a receiver
3, a 5V1A power supply
4. One infrared emission line
5. One infrared receiving line
6. A copy of instructions
Note: Please check your parts when unpacking. If the parts are incomplete, please consult your supplier.
(Please use the power supply provided by our company. If other power supplies cause product damage, it is not covered by the warranty.)
