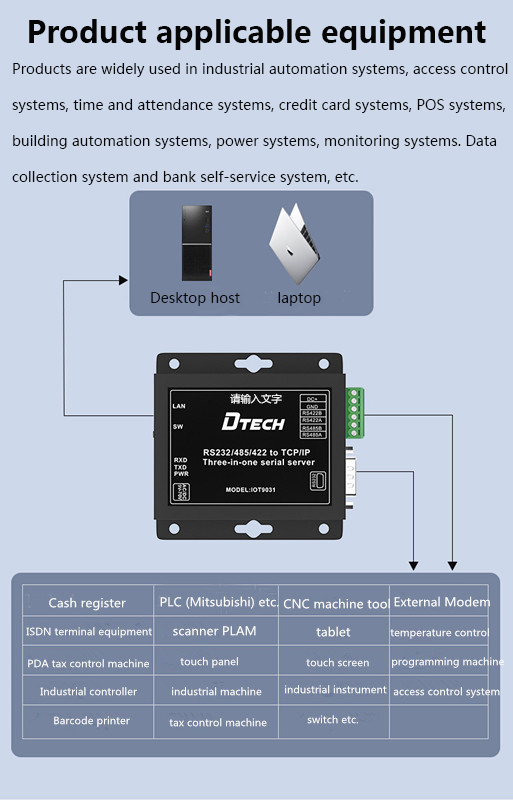

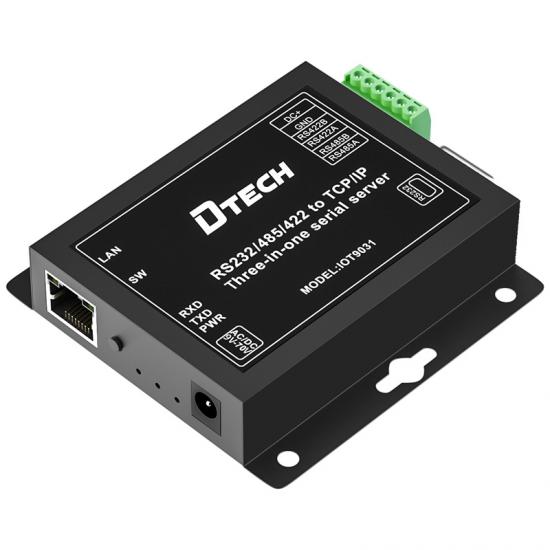

Smart transportation.The serial server IOT9031 is connected to the signal light,and the control center realizes the on-site traffic data collection and processing through Ethernet.At the same time,it can also provide an accurate quantitative basis for traffic command and dispatch and urban traffic planning.From a regional or global perspective,the traffic congestion,transit time,Real-time optimization of traffic phenomena such as traffic accidents and traffic capacity.
Product Origin:
chinaBrand:
DTECHItem NO.:
IOT9031AShipping Port:

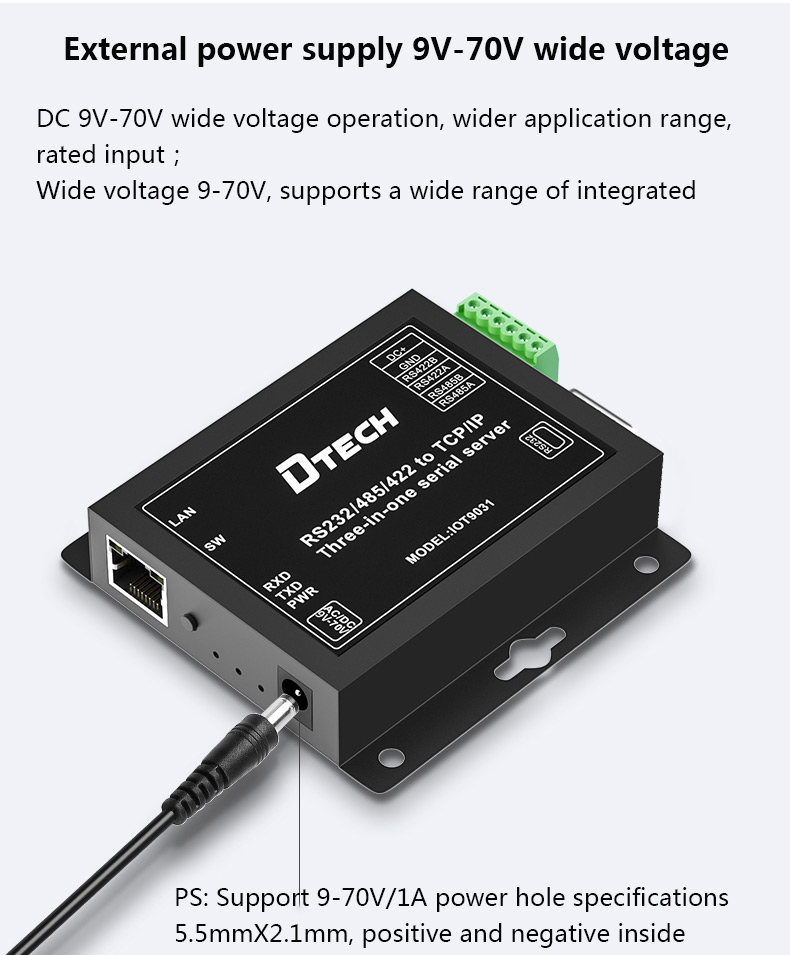

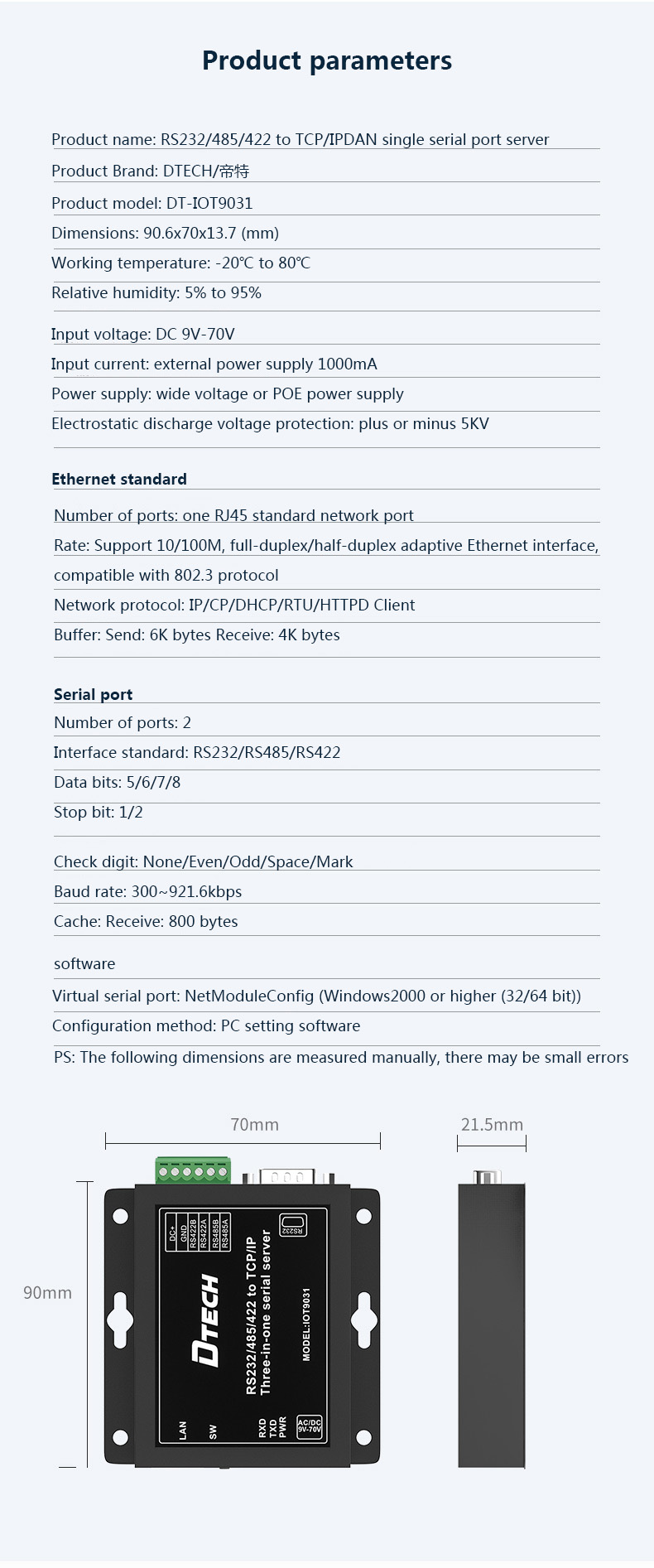

guangzhou/shenzhencommunication function,the transmission distance is more than 1200 meters,and each converter can allow connection of 32 RS232/485/422 interface devices.Dual serial port usage:RS232 and RS485 or RS232 and RS422 can be used together,RS422 and RS485 can not be used.
Smart transportation.The serial server IOT9031 is connected to the signal light,and the control center realizes the on-site traffic data collection and processing through Ethernet.At the same time,it can also provide an accurate quantitative basis for traffic command and
dispatch and urban traffic planning.From a regional or global perspective,the traffic congestion,transit time,Real-time optimization of traffic phenomena such as traffic accidents and traffic capacity.Modbus RTU/TCP.Two-way transparent transmission.Through Modbus network communication,Modbus RTU and communication between two communication protocols of Modbus TCP.For example:use the Modbus function of the serial server to read the temperature and humidity meter.
Previous :
DTECH Gold Plated USB Serial Adapter Cable 1.5m 2m 3m USB A to RJ45 Console Debugging Cable for Switch Router FirewallNext :
Passive RS232 to RS485 RS422 Converter 300BPS-115.2KBPS Modbus RTU TCP Industry Converter Adapter for Computer
DT-9000 is compatible with RS-232C,RS422, RS-485 standard.
DT-9003 is compatible with RS-232,RS422, RS-485 standard.
A reliable and stable point-to-point and point-tomultipoint communication can be ensured by DT-9016 photoelectric RS485 isolation interface converter.
Compatible with the Recommended Standards of RS-232C, RS-422 and RS-485, UT-208 photoelectric isolation interface converter can convert the single-ended RS-232 signal into balance differenced RS-422 or RS-485 signal.
DT-9028 is an industrial-grade optical isolation multifunctional converter with external power supply, it compatible with RS-232/RS-485/RS-422 standard.
DT-9077 fiber modem implements advanced optic transmission technology to extend signal transmission distance up to 120km on single-core fiber
Dtech Passive RS232 to RS485 Standard Converter High Quality plug and play DB9 Adapter
This product is a RS232/ RS422/ RS485 to TCP/ IP serial port server, with internal integration of TCP/ IP protocol stack , which can realize two-way transparent transmission of network data packets and serial data , with TCP CLIENT, TCP SERVER , UDPCLIENT, UDP SERVER , etc. Four working modes , the serial port baud rate can support up to 115200bps , which can be easily configured through the host computer software that this product is equipped with , which is convenient and fast. Products are widely used in industrial automation control systems , access control systems , time and attendance systems , credit card systems , POS systems, building automation systems, power systems , monitoring systems, data acquisition systems andbank self-service systems .
Active rs232 photoisolator 9 wire full optically isolated protection 2000vrms optically isolated
This converter can provide reliable connectivity for point-to-point or point to multipoint communication .Data communication rate is 300bps~38400bps..Supported communication methods is RS-232 to RS-485 converter.
Converter is compatible with the RS - 232, RS - 485 standard, can be an RS - 232 signal is converted to Differential signaling of the RS - 485 / RS422, without external power supply, internal adopt unique "RS - 232 charge pump" drive the whole circuit; Circuit with zero delay automatic transceiver conversion device, prevent collision of the I/O circuit automatic control data flow direction, so as to ensure the programs written in the RS - 232 manner without change, can be in the safe operation of the RS - 485 / RS422 mode, and fully ensure that suitable for the operation of the existing software and hardware interface.
