Guangzhou/ShenzhenUSB 2.0 A Male to RS485 Wire 6 PIN Serial Port Communication 5V Adapter Cable for Win8/10
Ⅰ. Product Parameters
|
Product Name |
USB to RS485 Serial 6P Terminal Cable |
| Model |
TB-1061 |
|
Product Chip |
UK FT232RQ+SP485 dual chip |
|
Product Material |
28AWG*6C shielded, wire OD4.5MM |
|
Connection Interface |
USB2.0 |
|
Communication Protocol |
Interface compatible with EIA/TIA RS485 standard |
|
Working Mode |
Asynchronous communication format (half duplex) |
|
Communication Distance |
USB: 0-5m; RS485: 0-1200m |
|
Wiring Method |
Terminal equipment can be connected through twisted pair or shielded wire |
|
Power Supply Method |
USB power supply |
|
Voltage Range |
5V |
|
Transmission Rate |
300-3000000bps |
|
System Compatibility |
Supports WinXP, Win7/8/10/11, Linux and other systems |
|
Drive Free System |
Win8/10 |
|
Cable Length |
1.8m |
|
Working Temperature |
-20℃ -70℃, relative humidity of 5% -95% |
|
Warranty |
1 Year |

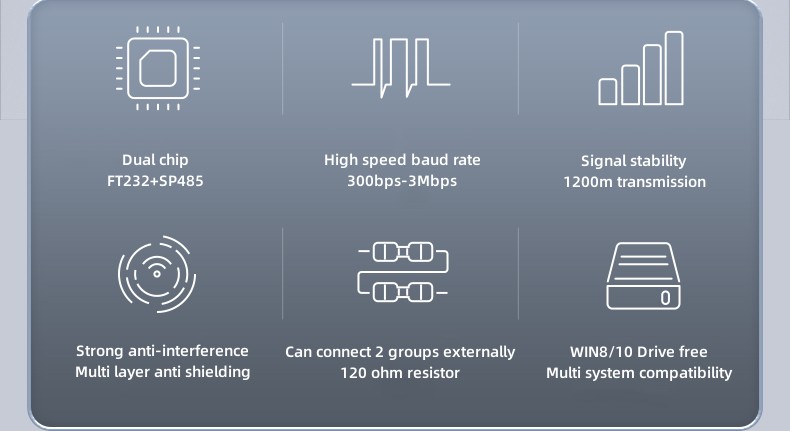

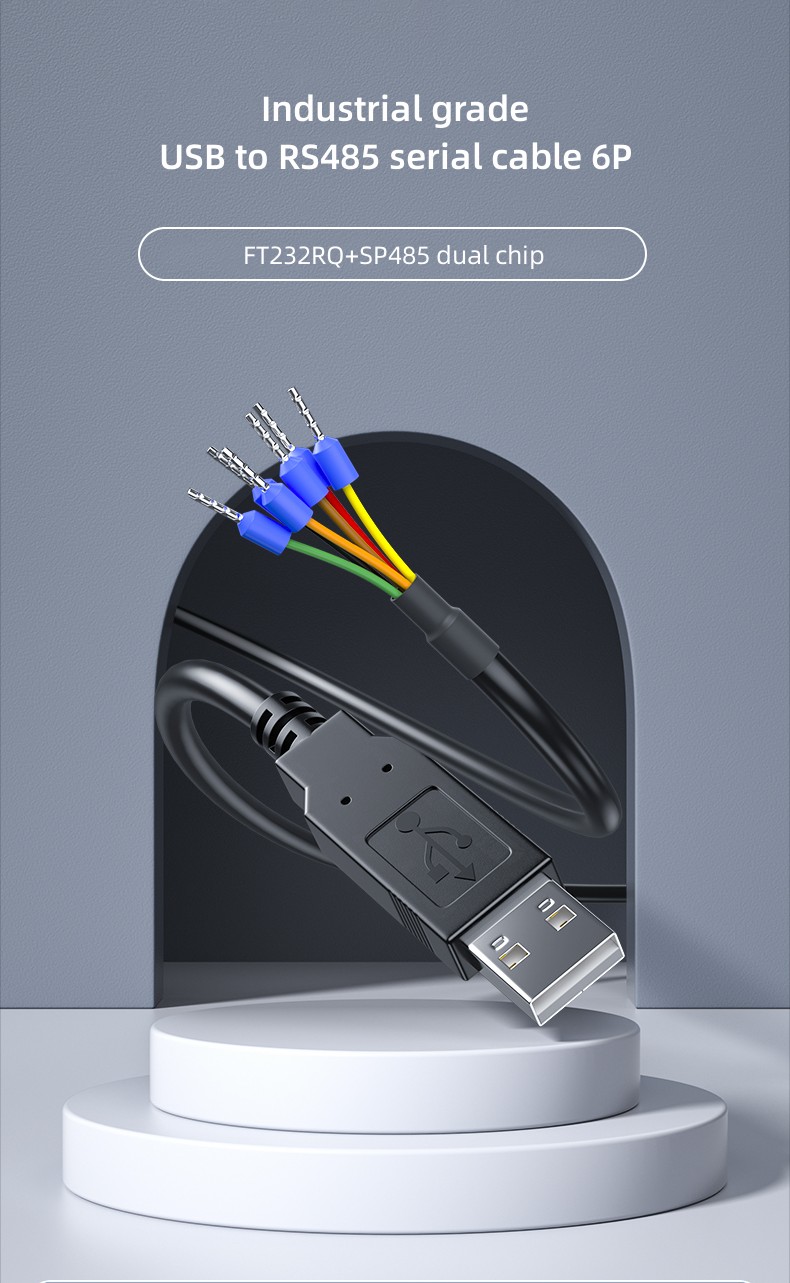

Industrial grade
USB to RS485 serial cable 6P
①Dual chip
FT232+SP485
②High speed baud rate
300bps-3Mbps
③Signal stability
1200 meter transmission
④Strong anti-interference
Multi layer anti shielding
⑤Can connect 2 groups externally
120 ohm resistor
⑥WIN8/10 Drive free
Multi system compatibility

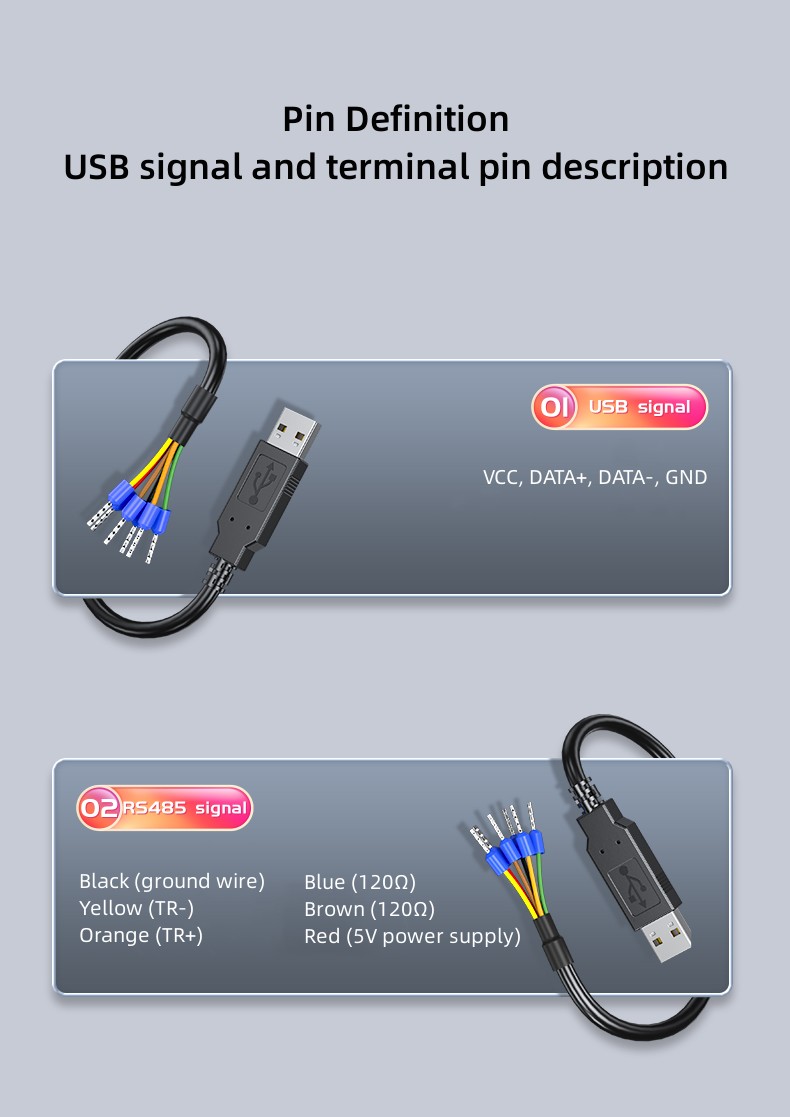

Pin Definition
USB signal and terminal pin description

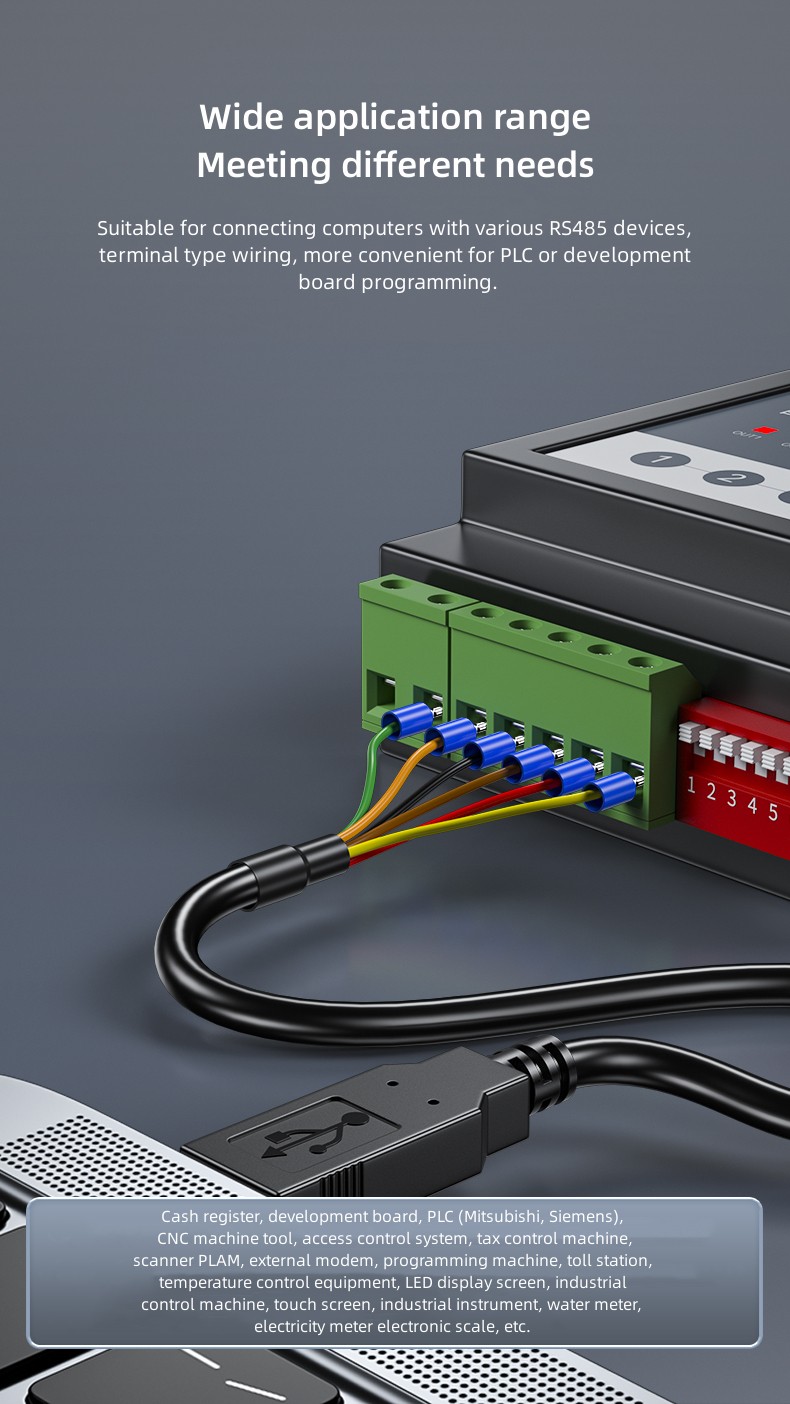

Wide application range
Meeting different needs
Suitable for connecting computers with various RS485 devices, terminal type wiring, more convenient for PLC or development board programming.
Cash register, development board, PLC (Mitsubishi, Siemens), CNC machine tool, access control system, tax control machine, scanner PLAM, external modem, programming machine, toll station, temperature control equipment, LED display screen, industrial control machine, touch screen, industrial instrument, water meter, electricity meter electronic scale, etc.

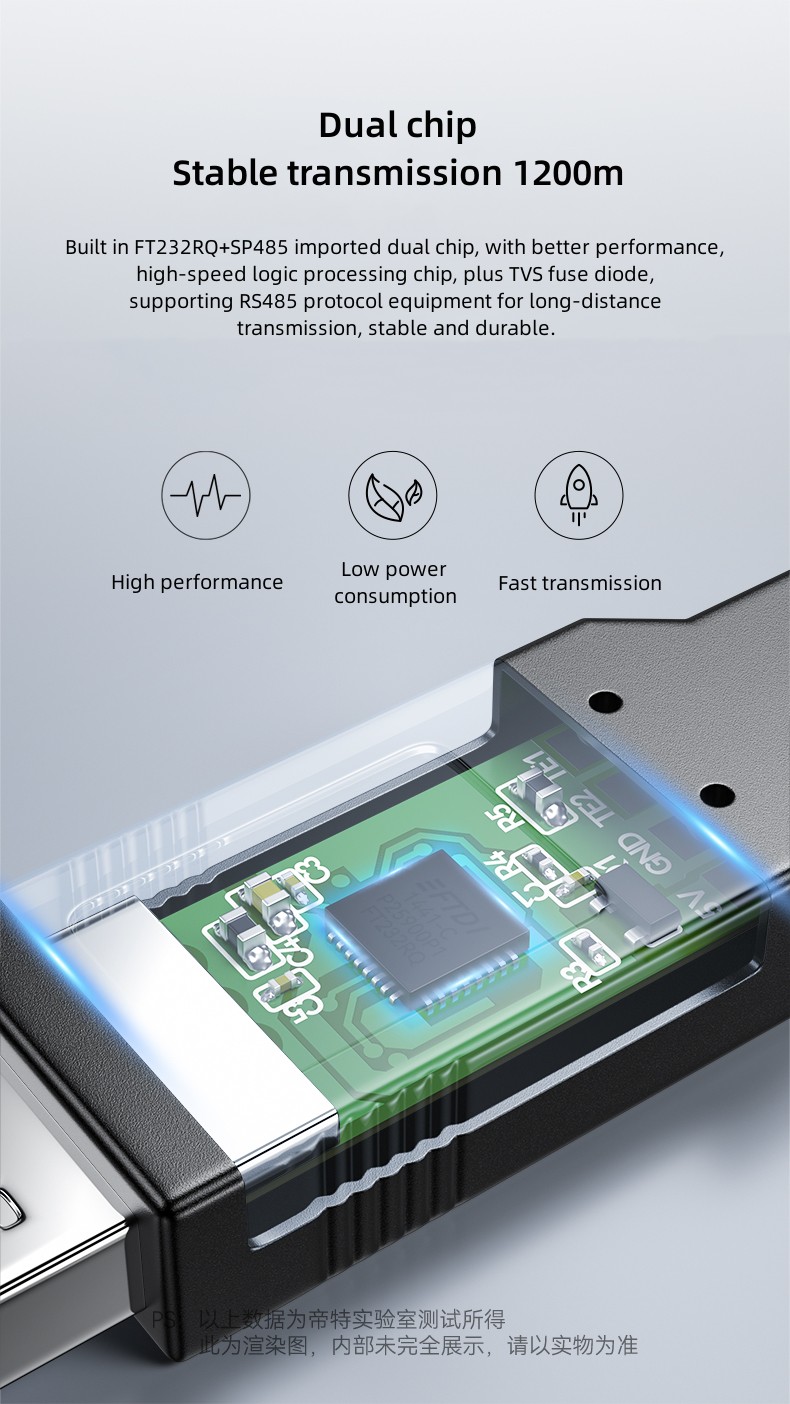

Stable transmission 1200m
Built in FT232RQ+SP485 imported dual chip, with better performance, high-speed logic processing chip, plus TVS fuse diode, supporting RS485 protocol equipment for long-distance transmission, stable and durable.

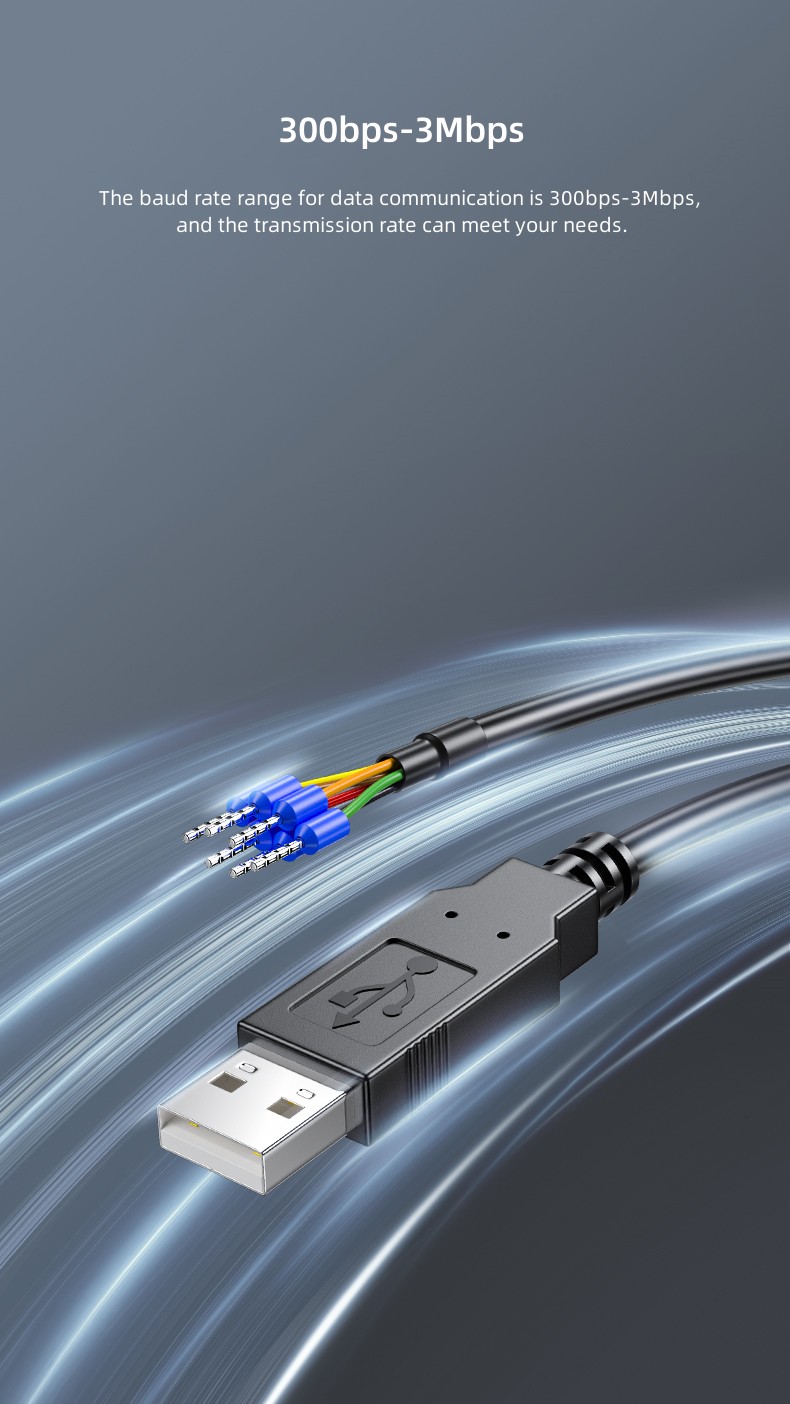

300bps-3Mbps
The baud rate range for data communication is 300bps-3Mbps, and the transmission rate can meet your needs.

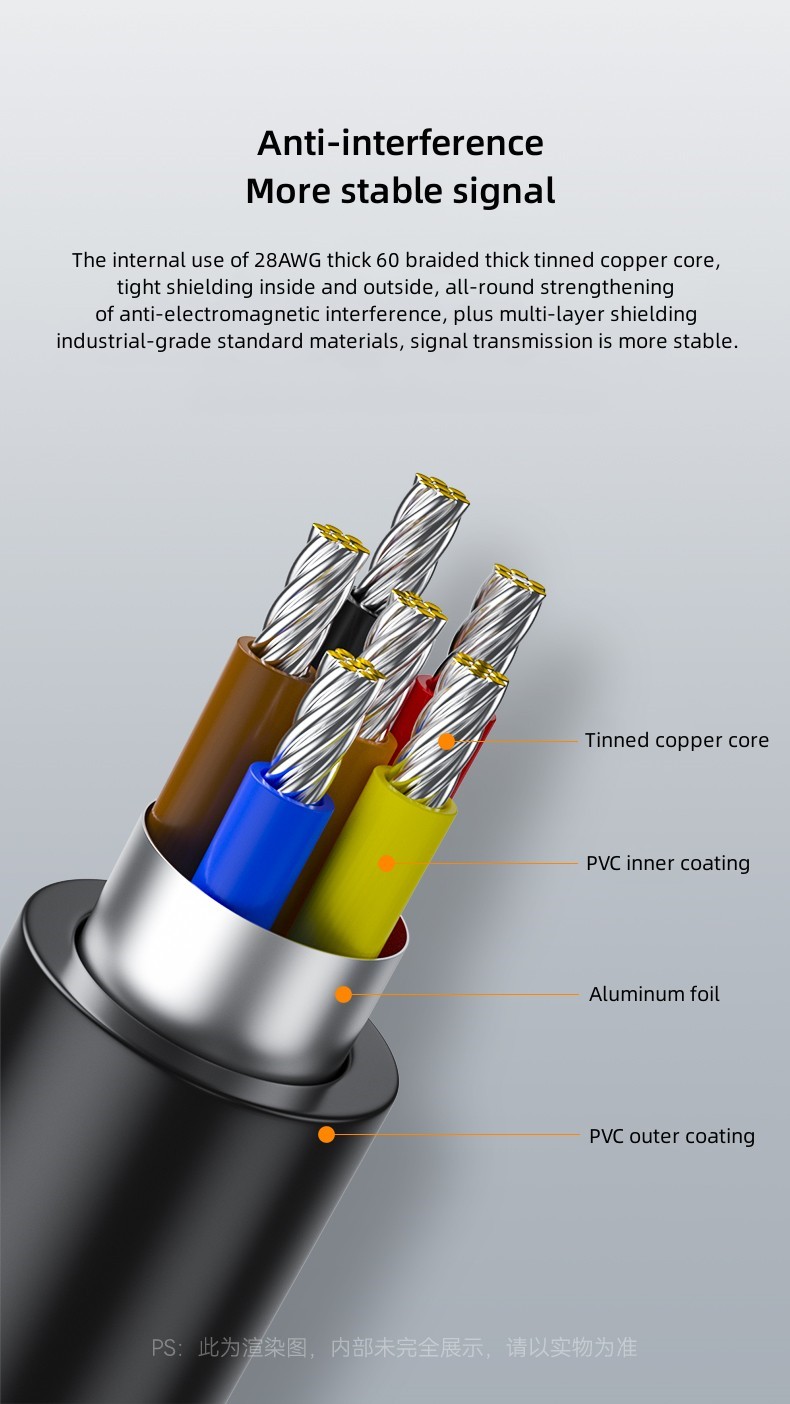

Anti-interference
More stable signal
The internal use of 28AWG thick 60 braided thick tinned copper core, tight shielding inside and outside, all-round strengthening of anti-electromagnetic interference, plus multi-layer shielding industrial-grade standard materials, signal transmission is more stable.

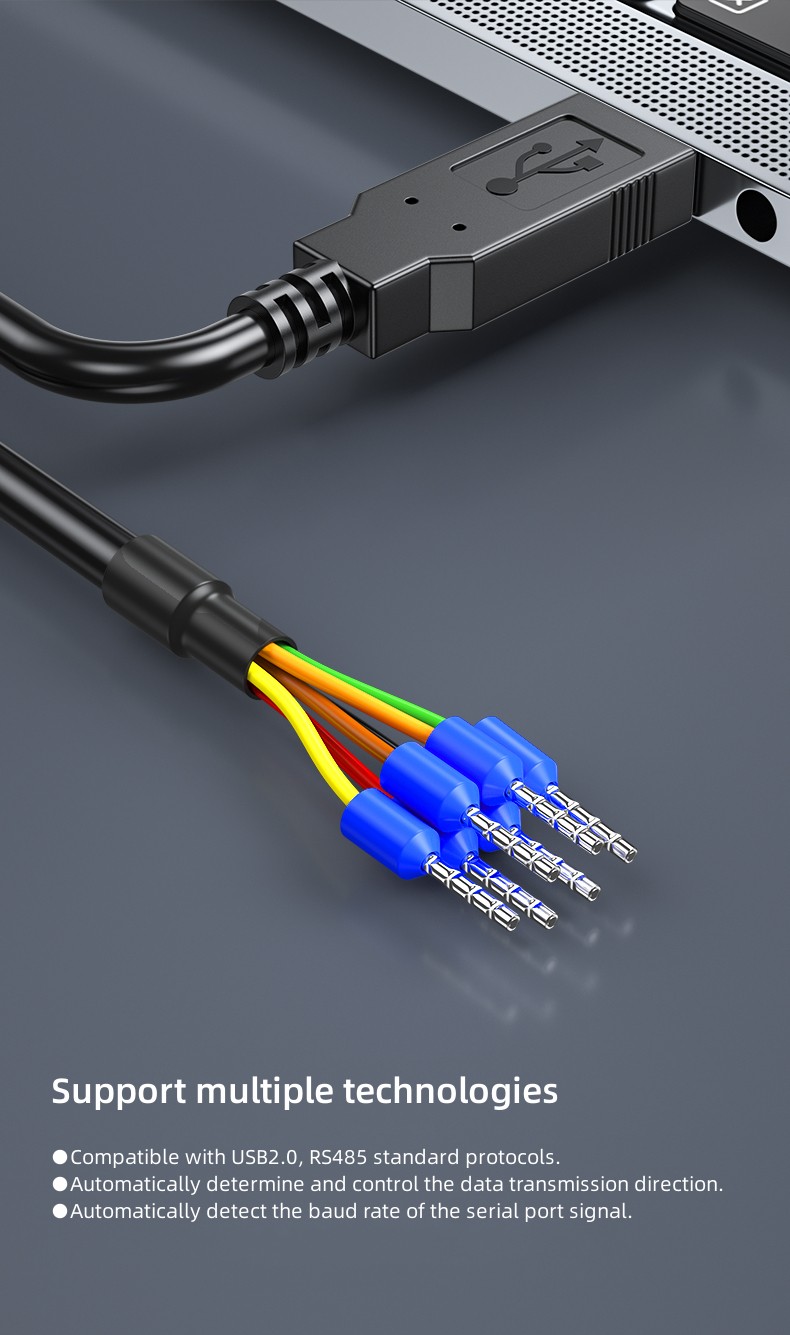

Support multiple technologies
●Compatible with USB2.0, RS485 standard protocols.
●Automatically determine and control the data transmission direction.
●Automatically detect the baud rate of the serial port signal.

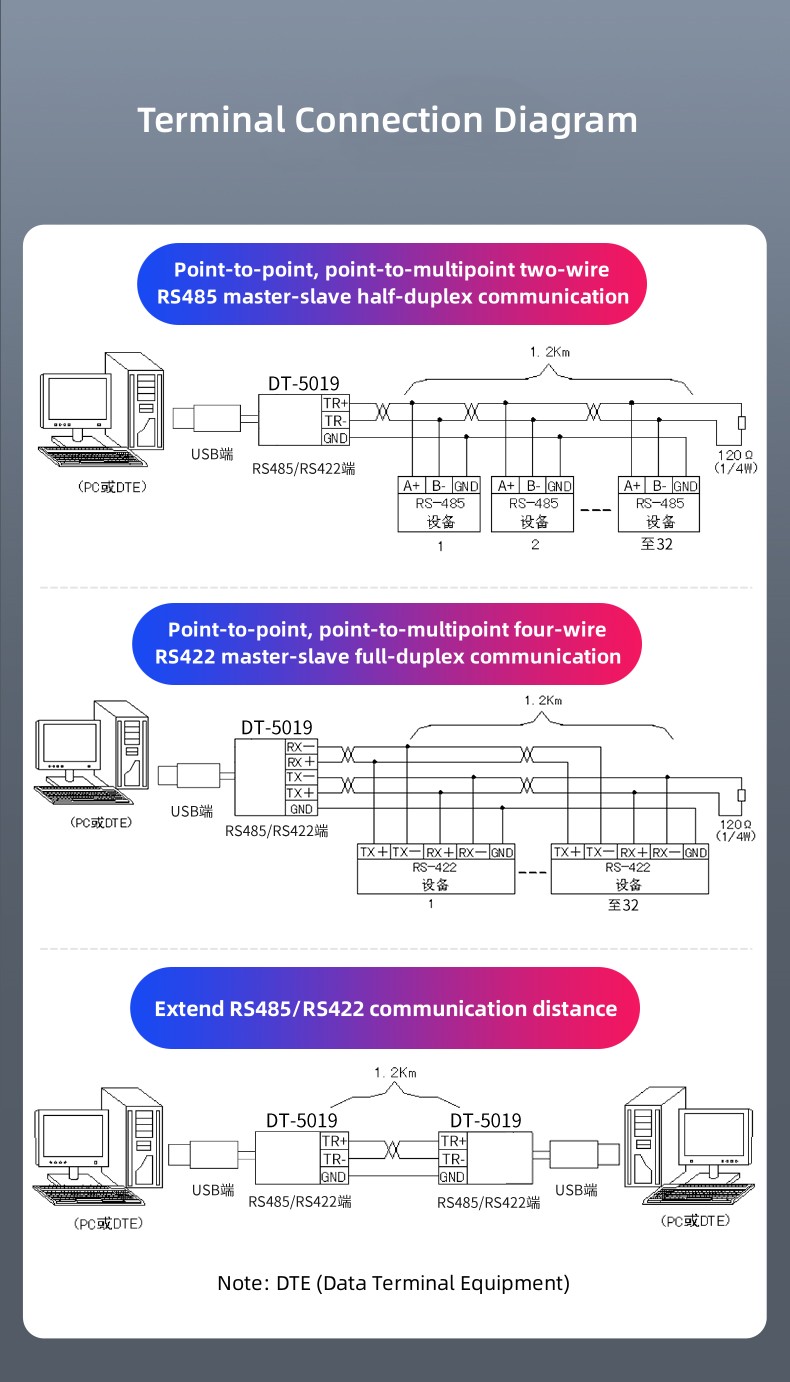

Terminal Connection Diagram
●Point-to-point, point-to-multipoint two-wire RS485 master-slave half-duplex communication
●Point-to-point, point-to-multipoint four-wire RS422 master-slave full-duplex communication
●Extend RS485/RS422 communication distance
Note: DTE (Data Terminal Equipment)

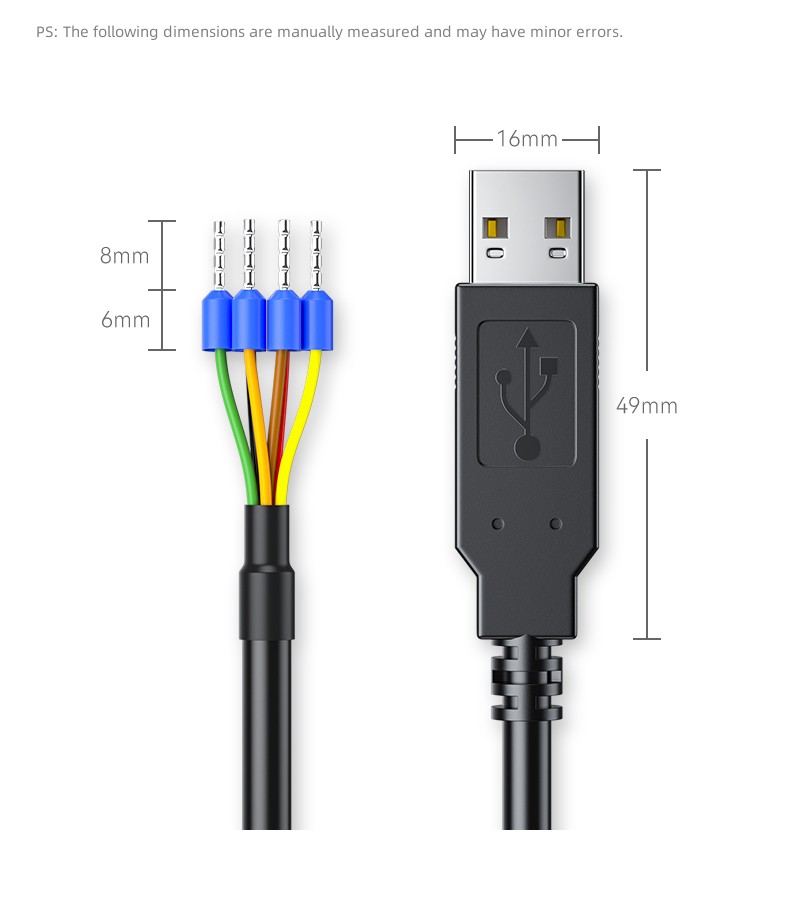

Ⅲ. Product Size
PS: The following dimensions are manually measured and may have minor errors.

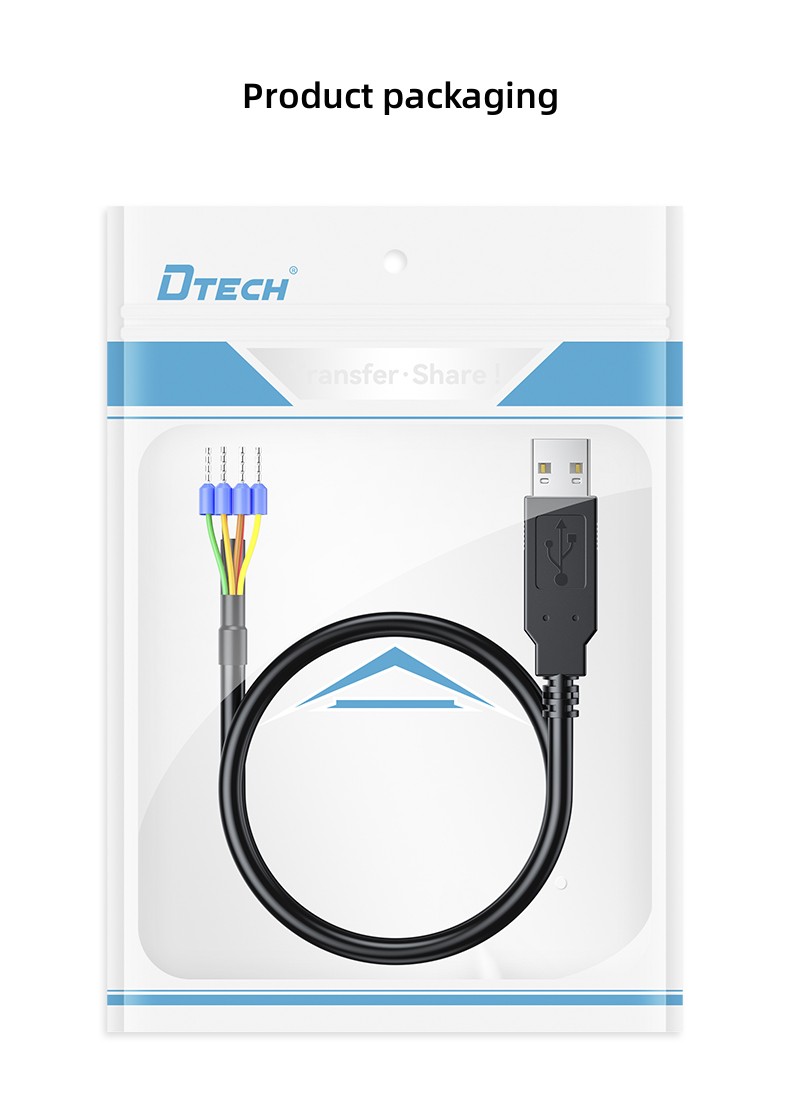

Ⅳ. Product Packaging
